64 12 089 Removing and installing or replacing silencer

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove FRONT ASSEMBLY UNDERBODY PROTECTION .

NOTE: Graphic similar.

Release screws (1).

Remove left underbody cover (2).

Fig 1: Identifying Lower Left Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

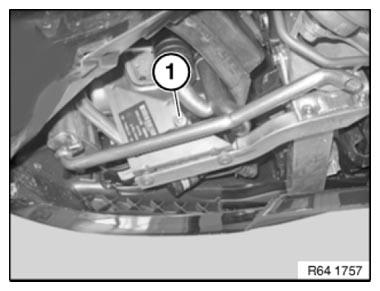

Unfasten screw (1)

Fig 2: Identifying Muffler/Silencer Screw

Courtesy of BMW OF NORTH AMERICA, INC.

For purposes of clarity, picture shows component removed.

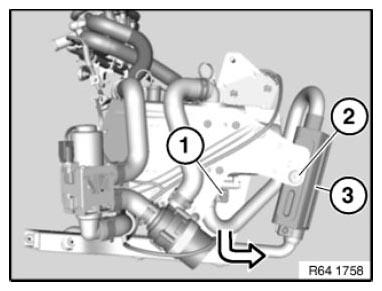

Release nut (1) and bolt (2).

Remove muffler/silencer (3) in direction of arrow.

Fig 3: Removing Muffler/Silencer

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove EXHAUST PIPE
