64 12 580 Removing and installing/replacing exhaust pipe

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Remove FRONT ASSEMBLY UNDERBODY PROTECTION .

NOTE: Graphic similar.

Release screws (1).

Remove lower left cover (2).

Fig 1: Identifying Lower Left Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

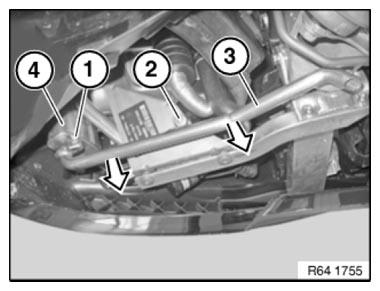

Slacken nut (1).

Release screw (2).

Withdraw exhaust pipe (3) in direction of arrow from silencer (4).

Installation note:

Make sure exhaust pipe (3) is correctly seated.

Fig 2: Removing Exhaust Pipe From Silencer

Courtesy of BMW OF NORTH AMERICA, INC.
