11 65 020 Removing and Installing/Replacing Exhaust Turbocharger (N55)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The Module Consists of Exhaust Turbo Charger and Exhaust Manifold.
The Weight of The Turbocharger Is Approx. 15 Kg.

Necessary Preliminary Tasks:

Remove FAN COWL with Electric Fan.
Drain COOLANT .
Remove Front Right Wheel Arch Panel. See FRONT SECTION and REAR SECTION .
Remove COOLANT THERMOSTAT .
Remove COOLANT PUMP .
Remove CHARGE AIR COOLER .
Remove The CATALYTIC CONVERTER R.
Remove Right ENGINE SUPPORT ARM .
Remove Right ENGINE MOUNT .

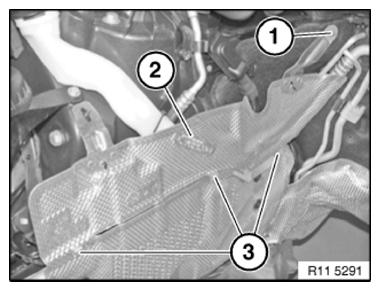

Slacken Nut (1).

Release Screw (2).

Remove Heat Shield (3) By Lifting Upwards.

Fig 1: Identifying Heat Shield, Screw and Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Undo Sheet Metal Nut (1).

Remove Heat Shield (2) By Maneuvering Upwards.

Installation Note:

Check Retaining Clamps (3) Are Properly Seated.

Fig 2: Identifying Heat Shield, Sheet Metal Nut and Retaining Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Release Screws (1).

Tightening torque 11 53 4AZ .

Fig 3: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release Screw (1).

Tightening torque 11 53 10AZ .

If Necessary, Use Appropriate Tool To Loosen Coolant Return Line (3) and Coolant Flow Line (2) At Connection Point.

Installation Note:

Replace Sealing Rings.

Fig 4: Identifying Coolant Return Line and Coolant Flow Line

Courtesy of BMW OF NORTH AMERICA, INC.

Release Screw (1).

Loosen Screws (3) But Do Not Remove.

NOTE: Holder (2) Can Only Be Removed If Turbocharger Module Has Been Removed.

Fig 5: Identifying Holder and Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release Screw (1).

Tightening torque 11 42 6AZ .

If Necessary, Use Appropriate Tool To Loosen Oil Return Lines At Point of Connection (2).

Installation Note:

Replace Sealing Ring.

Fig 6: Identifying Oil Return Line and Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release Screw (1).

Tightening torque 11 42 7AZ .

If Necessary, Use Appropriate Tool To Loosen Oil Return Lines (2).

Installation Note:

Replace Sealing Ring.

Fig 7: Identifying Oil Return Line and Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release Screw (1).

Tightening torque: 11 42 4AZ .

If Necessary, Use Appropriate Tool To Loosen Coolant Return Lines At Point of Connection (2).

Installation Note:

Replace Sealing Ring.

Fig 8: Identifying Coolant Return Line and Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen Plug Connection (1) At Blow-Off Valve.

Release Screw (2).

Tightening torque 11 65 4AZ .

If Necessary, Use Appropriate Tool To Loosen Oil Feeder Lines At Point of Connection (3).

Installation Note:

Replace Sealing Ring.

Fig 9: Identifying Blow-Off Valve Connector, Oil Feeder Line, and Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect Vacuum Hose (1) From Vacuum Line.

Fig 10: Identifying Vacuum Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect Vacuum Hose (1) From Cylinder Head Cover.

Fig 11: Identifying Vacuum Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Remove Heat Shield (1).

Tightening torque: 11 65 2AZ .

Loosen All Flange Nuts (2) Along The Line.

Remove Module By Maneuvering Downwards On Gearbox Side.

NOTE: Overall Weight of Module Is Approximately 15 Kg.

Fig 12: Identifying Heat Shield and Flange Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Remove Both Brackets From Gearbox.

Tightening torque: 24 00 1AZ .

Tightening torque: 24 00 2AZ .

Fig 13: Identifying Bracket and Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Oil Supply Line (2) Can Only Be Replaced After Removal of The Turbocharger.

Release Screw (1).

If Necessary, Use Appropriate Tool To Loosen Oil Feeder Lines At Point of Connection (2).

Fig 14: Identifying Oil Supply Line and Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

Replace All Sealing Rings (1).

Fig 15: Identifying Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

Replace All Graphite Seals (1).

Position Turbocharger On Cylinder Head and Hold In Place with Two Bolts.

Fig 16: Identifying Graphite Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Insert Bolt (1) But Do Not Tighten At This Point.

Fig 17: Identifying Holder and Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 18: Exhaust Manifold Flange Nuts Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The Module Consists of Exhaust Gas Turbo Loader and Exhaust Gas Manifold and Must Be Installed Stress-Free.

Torque and Torque Sequence Must Be Observed Without Fail.

Tightening torque: 11 65 1AZ .

Join All Flange Nuts In Sequence 1 To 15 To 8 Nm.
Tighten All Flange Nuts To A Torque of 13 Nm In Sequence (1 To 15).

Installation Note:

Flange Nuts 1 To 5 Are Accessible From Above.

Flange Nuts 6 To 15 Are Accessible From Below.

Secure Screws (3).

Tightening torque: 11 65 9AZ .

Tighten Bolt (1).

Tightening torque 11 65 8AZ .

Fig 19: Identifying Holder and Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble Engine.

Observe BMW Diagnostics System Instruction.

Carry Out BMW Leak Test for Intake System.
