11 13 010 Removing and Installing/Replacing Upper Oil Sump Section (N63O1)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

11 9 240 .
11 4 470 .

Necessary Preliminary Tasks:

Drain Off ENGINE OIL .
LOWERING FRONT AXLE .
Remove LOWER OIL SUMP SECTION .
Remove OIL PUMP .
Release Supply/Return Lines On Oil Filter
Release Holders of Supply/Return Lines On Oil Sump
Detach Plug From Oil Pressure Switch

Unclip Wiring Harness On Oil Sump

Release Oil Filter Cover (1) with Special Tool 11 9 240 .

Tightening torque 11 42 1AZ .

Graphic Without Reinforcement Plate.

Fig 1: Removing Oil Filter Cover Using Special Tool 11 9 240

Courtesy of BMW OF NORTH AMERICA, INC.

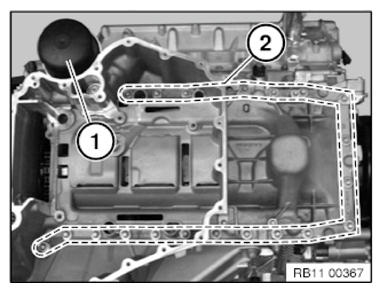

Remove Oil Filter (1).

Release Bolts In Area of Line (2).

Tightening torque 11 13 2AZ .

Fig 2: Identifying Oil Filter and Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

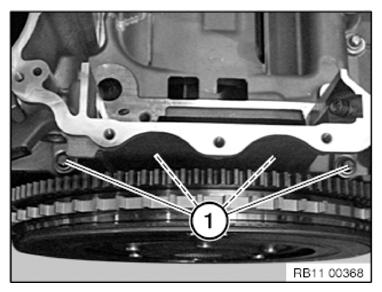

Release Screws (1).

Release 4 Bolts On Transmission Side.

Graphic Without Transmission.

Installation Note:

Clean Gasket Debris From Sealing Surfaces with Special Tool 11 4 470 .

Replace Gasket.

Modify Oil Pressure Switch If Replacing Oil Sump.

Fig 3: Locating Bolts On Transmission Side

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble Engine.
