11 41 000 Removing and Installing/Replacing Oil Pump (N63O1)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

00 9 120 .
11 7 201
11 8 920 .
11 9 280 .
51 0 342
2 213 485 .

IMPORTANT: All Adjusting Procedures On The Chain Drive Must Be Observed.
A Timing Chain Which Is Tensioned Too Tautly Can Cause Interference Noise In The Chain Drive.
A Timing Chain That Is Too Slack Can Cause The Timing Chain To Jump.
Risk of Damage In Oil Pump Drive.

Necessary Preliminary Tasks:

DRAINING ENGINE OIL .
REMOVE Lower Oil Sump Section.

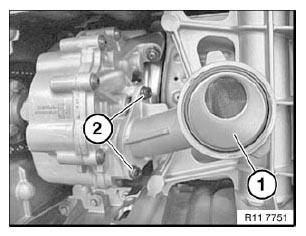

Unscrew Nuts (2).

Tightening torque: 11 41 1 AZ .

Remove Intake Pipe (1).

Installation Note:

Replace O-Ring.

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

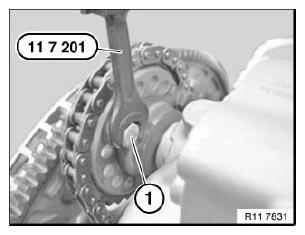

Release All Nuts (1) Using Special Tool 11 7 201.

Tightening torque 11 41 5 AZ .

Remove Oil Pump Drive Gear.

NOTE: Graphic Shows Engine Removed

Fig 2: Releasing Nuts Using Special Tool (11 7 201)

Courtesy of BMW OF NORTH AMERICA, INC.

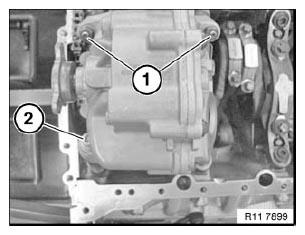

Unscrew Nuts (1).

Release Screws, Remove Oil Pump (1) with Aid of A Second Person.

Installation Note:

Replace Screws.

Tightening torque 11 41 2AZ .

NOTE: Graphic Without Top Oil Sump

Fig 3: Identifying Oil Pump and Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

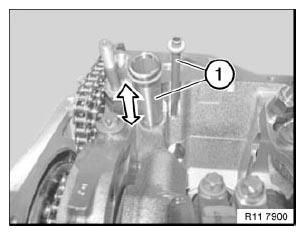

Pull Off Engine Oil Line (1) Upwards In Direction of Arrow.

NOTE: Graphic Without Top Oil Sump

Fig 4: Detaching Oil Lines

Courtesy of BMW OF NORTH AMERICA, INC.

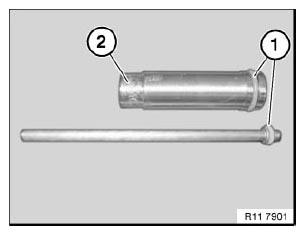

Installation Note:

Replace Sealing Rings (1).

Lightly Oil Sealing Ring 1 (1).

Coat Engine Oil Pipe (2) with Suitable Lubricant.

Fig 5: Identifying Sealing Rings

Courtesy of BMW OF NORTH AMERICA, INC.

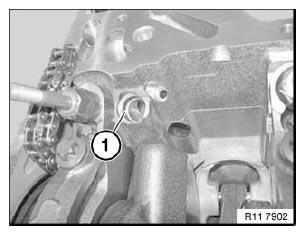

Installation Note:

Replace O-Ring (1) for Oil Feed Line.

Fig 6: Identifying Oil Feed Line O-Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Fit Engine Oil Pipe (1) In Direction of Arrow.

Fig 7: Detaching Oil Lines

Courtesy of BMW OF NORTH AMERICA, INC.

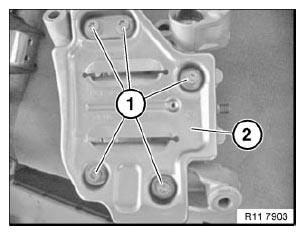

Installation Note:

When The Oil Pump Is Replaced, The Oil Deflector (2) Must Be Remounted.

Release Screws (1).

Tightening torque: 11 41 6 AZ .

Fig 8: Identifying Oil Deflector and Screws

Courtesy of BMW OF NORTH AMERICA, INC.

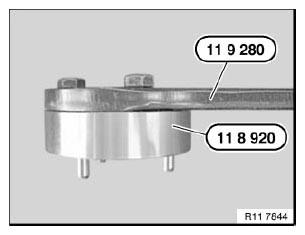

Fit Special Tool 11 8 920 On Special Tool 11 9 280 .

Fig 9: Fitting Special Tool 11 8 920 On Special Tool 11 9 280

Courtesy of BMW OF NORTH AMERICA, INC.

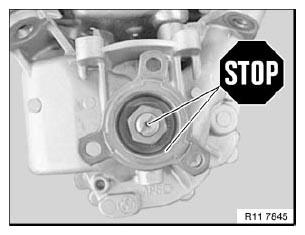

IMPORTANT: Left-Hand Thread On Oil Pump Screw Connection.
Do Not Grip Oil Pump Drive with A Pair of Pliers Risk of Damage .

Fig 10: Identifying Oil Pump Screw

Courtesy of BMW OF NORTH AMERICA, INC.

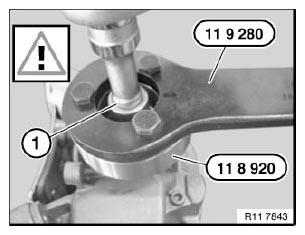

IMPORTANT: Nut (1) Has Left-Hand Thread.

Position Special Tool 11 8 920 On Sprocket.

Slacken Nut (1).

Fig 11: Identifying Special Tools and Sprocket Nut

Courtesy of BMW OF NORTH AMERICA, INC.

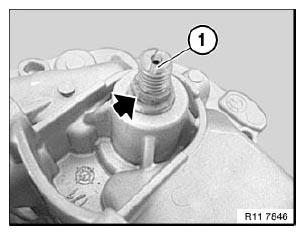

Installation Note:

Check Mounting Flats On Pump Shaft (1) for Damage.

Fig 12: Locating Mounting Flats On Pump Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

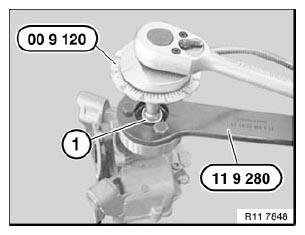

IMPORTANT: Nut (1) Has Left-Hand Thread.
Grip Pump with Assistance of A Second Person.
Secure Nut (1) with Special Tool 00 9 120 .
Tightening torque: 11 41 4 .

Fig 13: Identifying Oil Pump Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Join and Secure Nuts (1).

Tightening torque 11 41 2 AZ .

NOTE: Graphic Without Top Oil Sump

Fig 14: Identifying Oil Pump and Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Install Oil Pump Drive Gear.

Secure All Nuts (1) with Special Tool 11 7 201.

Tightening torque 11 41 5 AZ .

Fig 15: Releasing Nuts Using Special Tool (11 7 201)

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust Oil Pump Timing Chain.

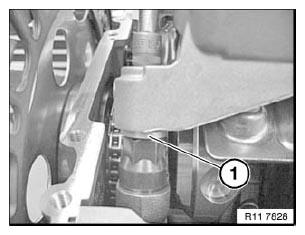

Pretension Oil Pump Adjusting Sleeve (1) with A Hexagon Socket Wrench.

Adjustment Value 10 Mm +2 .

NOTE: Graphic Without Top Oil Sump

Fig 16: Pretensioning Oil Pump Adjusting Sleeve with Hexagon Socket Wrench

Courtesy of BMW OF NORTH AMERICA, INC.

Procedure On Removed Engine

Upper Oil Sump Has Been Removed.

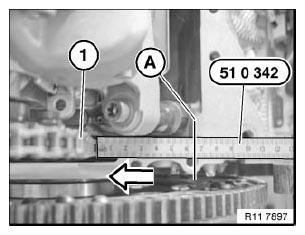

Minimally Preload Timing Chain (1) with Special Tool 51 0 342.

Read Off Measured Value A On Special Tool 51 0 342 and Note Down.

IMPORTANT: Do Not Use Force To Preload Timing Chain (1).

Fig 17: Pre-Loading Timing Chain with Special Tool 51 0 362 and Measuring Value "A"

Courtesy of BMW OF NORTH AMERICA, INC.

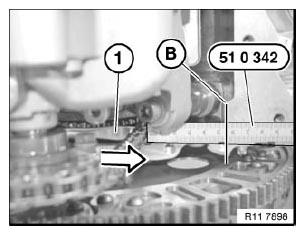

Using A Screwdriver (1), Preload Timing Chain To Minimal Extent In Direction of Arrow.

Read Off Measured Value B On Special Tool 51 0 342 and Note Down.

IMPORTANT: Do Not Use Force Preload Timing Chain.

Measured Value A Minus Measured Value B Results In The Adjustment Value.

Adjustment Value 10 Mm +2 .

Fig 18: Pre-Loading Timing Chain Using Screwdriver and Measuring Value "B" On Special Tool 51 0 342

Courtesy of BMW OF NORTH AMERICA, INC.

Procedure On Installed Engine

Upper Oil Sump Has Been Installed.

Position Drag Pointer (1) of Special Tool 2 213 485 On Oil Pump Chain.

Fig 19: Positioning Drag Pointer of Special Tool 2 213 485 On Oil Pump Chain

Courtesy of BMW OF NORTH AMERICA, INC.

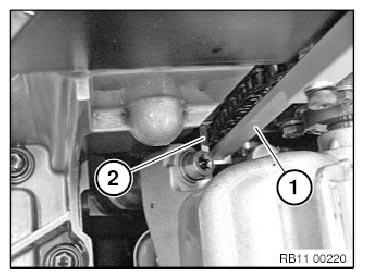

Installation Note:

Attachment Point (1) N63O0/N63O1/S63.

Attachment Point (2) N74.

Fig 20: Identifying Attachment Points

Courtesy of BMW OF NORTH AMERICA, INC.

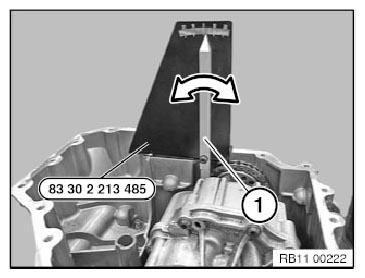

IMPORTANT: Do Not Use Force Preload Timing Chain.

Push Drag Pointer (1) To The Left and Right Until Value Has Been Determined.

Adjustment Value 10 Mm +2 .

Fig 21: Pushing Drag Pointer To Left and Right

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust Oil Pump Timing Chain.

Pretension Oil Pump Adjusting Sleeve (1) with A Hexagon Socket Wrench.

Adjustment Value 10 Mm +2 .

NOTE: Graphic Without Top Oil Sump

Fig 22: Pretensioning Oil Pump Adjusting Sleeve with Hexagon Socket Wrench

Courtesy of BMW OF NORTH AMERICA, INC.

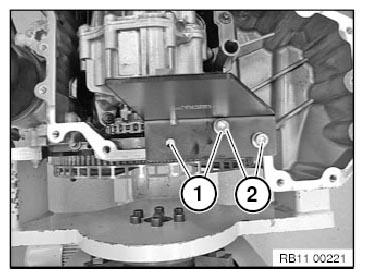

Join and Secure Screw (2).

Tightening torque 11 41 2 AZ .

NOTE: Graphic Without Top Oil Sump

Fig 23: Identifying Oil Pump and Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble Engine.
