11 13 020 Removing and Installing/Replacing Lower Oil Sump Section (N63O1)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

RELEASING OIL DRAIN PLUG and Drain Engine Oil.
Remove UNDERBODY PROTECTION .

Unlock Plug Connection (1) On Oil Level Sensor and Disconnect.

Release Bolts Along Line (2).

Tightening torque 11 13 2AZ .

Remove Lower Oil Sump Section.

Installation Note:

Clean Sealing Surfaces.

Replace Gasket.

Replace Screws.

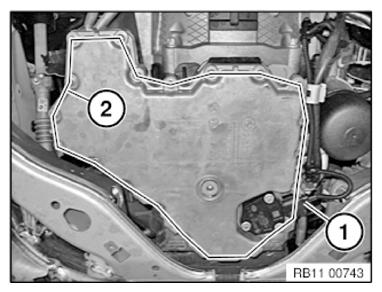

Fig 1: Identifying Connector and Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

When Replacing Oil Sump Bottom Section:

Convert Oil Level Sensor.

Replace Sealing Ring.
