11 00 670 Securing Engine In Installation Position (N63O1)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

00 6 100 .
00 6 130 .
2 318 635
00 6 050

WARNING: Danger of Injury!
Observe Following Instructions Relating To Special Tool:

Prior To Each Use, Check The Special Tools for Defects, Modifications and Operational Reliability.
Damaged/Modified Special Tools Must Not Be Used!
No Changes or Modifications May Be Made To The Special Tools!
Keep Special Tools Dry, Clean and Free of Grease.

IMPORTANT: Before Lifting The Engine, Check The Lifting Lugs for Damage (Cracks) and To Ensure They Are Seated Securely.

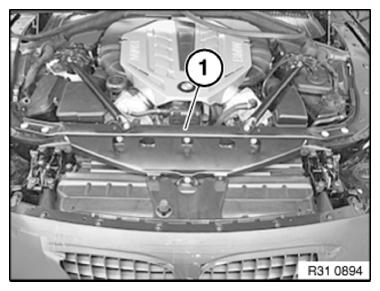

IMPORTANT: Special Tool 00 6 100 Must Not Be Fitted When Cross-Member (1) Is Installed!

Fig 1: Identifying Cross-Member

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary Preliminary Tasks:

SECURING THE ENGINE COMPARTMENT LID IN THE SERVICE POSITION .
Remove TRIM PANEL for Engine Compartment Lid At Side.
Remove Underbody Protection At FRONT and REAR .
Remove STIFFENING PLATE .

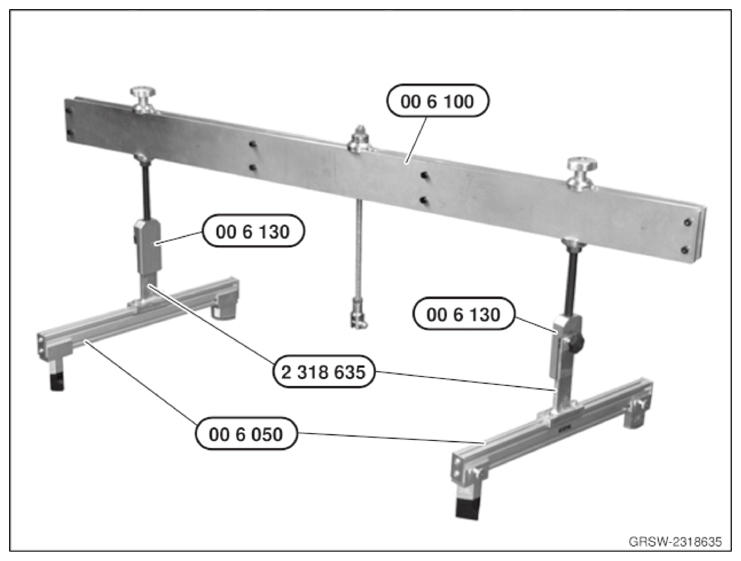

Fig 2: Identifying Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Completion of Cross-Member 00 6 100 with Adapters 00 6 130 .

T-Pieces 2 318 635 and Facings 00 6 050.

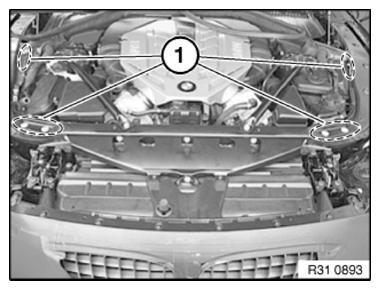

NOTE: Contact Points (1) for Special Tool 00 6 050 Are Pictured.

Fig 3: Identifying Contact Points for Special Tool On Transverse Member

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of Damage!
Position Transverse Member 00 6 100 with A 2Nd Person Helping On Contact Points ().

WARNING: Danger of Injury!
Align All Struts and Feet.
Tighten Down All Screws and Nuts On Cross-Member 00 6 100 .
Attach Hook (1) of Engine Lifting Beam In Lifting Eye.

Fig 4: Identifying Supports

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Tightening Screws and Nuts On Crossmember 00 6 100

Courtesy of BMW OF NORTH AMERICA, INC.

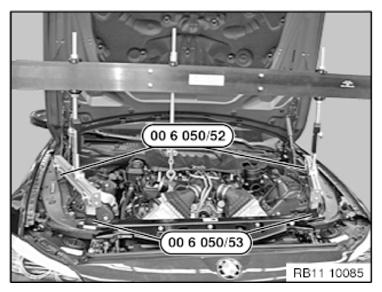

Ensure That Supports 00 6 050/53 and 00 6 050/52 Are Correctly Seated.

Slightly Pretension The Spindle of The Engine Support Beams.

IMPORTANT: Avoid A Change of Engine Position In The Transverse or Longitudinal Direction.
Always Make Sure There Is Sufficient Clearance Between The Engine (or Its Add-On Parts) and The Body.

Release Screws (1) of Engine Mount.

Tightening torque 22 11 1AZ .

Raise Engine Approx. 10 Mm with Cross Member.

Fig 6: Identifying Engine Mount Screws

Courtesy of BMW OF NORTH AMERICA, INC.
