11 12 005 Removing and Installing/Sealing Left Cylinder Head Cover (N63)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools Required:
- 11 4 470 .
Necessary Preliminary Tasks:
- Remove ACOUSTIC COVER .
- Disconnect NEGATIVE BATTERY TERMINAL .
- Remove Left CHARGE AIR COOLER .
- Remove INTAKE FILTER HOUSING .
- Remove Expansion Tank. See COOLANT EXPANSION TANK, INTERCOOLER EXPANSION TANK, and EXPANSION TANK FOR CHARGE AIR COOLER .
- Remove Coolant Pipe From Cylinder Head Cover (E71 Only)
- Remove Coolant Valve for Heater Feed Line
- Disconnect FUEL FEED LINE .
- Detach Wiring Harness for Injectors and Lay To One Side
- Remove IGNITION COILS , Cylinders 5-8
- Remove INJECTORS , Cylinders 5-8
- Remove HIGH-PRESSURE PUMP .

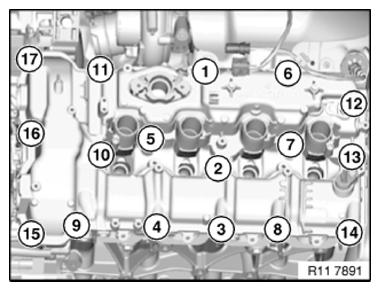

Release Bolts In Sequence (17 To 1).
Remove Cylinder Head Cover.

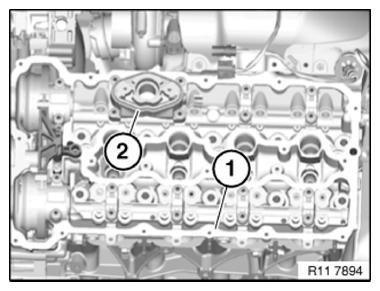

Clean Sealing Surface (1) with Special Tool 11 4 470 .
Installation Note:
Replace Seal (2).
Installation Note:

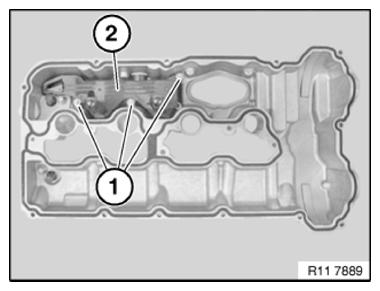

Replace Profile Seal of Cylinder Head Cover.
Installation Note:

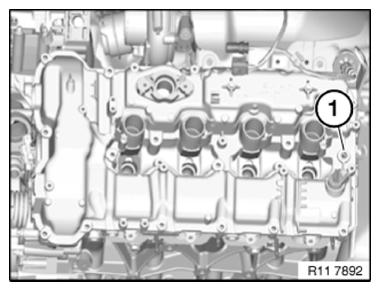

It Is Important To Join Screw (1) for Exact Positioning of The Camshaft Sensors.
Fit Cylinder Head Cover.
Position Screw (1).
Release Screw (1) By 90°.
Secure Cylinder Head Cover In Sequence (1 To 17) In Two Work Steps.
Tightening torque 11 12 3AZ .
Assemble Engine.
