11 00 Removing and Installing/Replacing Acoustic Cover (N63)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Remove Acoustic Cover (1) In Following Steps:

Increase
Remove In Direction of Travel

Installation Note:

Insert Acoustic Cover (1) Into Existing Rubber Guides.

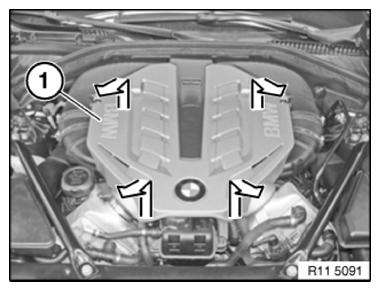

Fig 1: Removing Acoustic Cover

Courtesy of BMW OF NORTH AMERICA, INC.
