11 00 Mounting engine on assembly stand (N57 Diesel)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Pay attention to manufacturer's information

Necessary preliminary tasks:

Remove ENGINE .
Remove engine support arm on left and right. See RIGHT ENGINE SUPPORT ARM and LEFT ENGINE SUPPORT ARM . For AWD vehicles with N57 engine, see applicable procedure for LEFT ENGINE SUPPORT ARM .

Prepare special tool 00 2 300 together with the special tool 00 2 320 .

Fig 1: Removing Engine Support Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Attach special tool 00 2 328 to fixture (L) on left of engine support arm with screws (1).

Fig 2: Attaching Special Tool (00 2 328) To Fixture (L) Of Engine Support Arm

Courtesy of BMW OF NORTH AMERICA, INC.

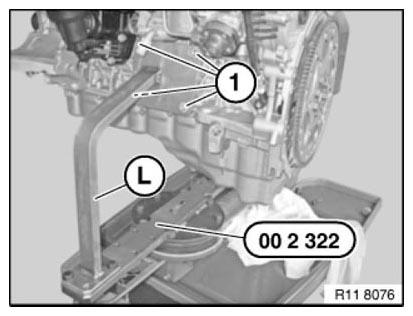

Attach special tool 00 2 328 to fixture (R) on right of engine support arm with screws (1).

Fig 3: Attaching Special Tool (00 2 328) To Fixture (R) Of Engine Support Arm

Courtesy of BMW OF NORTH AMERICA, INC.
