11 00 50 Removing and installing/replacing the engine (N57 Diesel)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 0 070 .
17 2 050 .

Necessary preliminary tasks:

Move engine compartment lid into service position. See SERVICE POSITION OF ENGINE COMPARTMENT LIDor SERVICE POSITION OF ENGINE COMPARTMENT LID (ACTIVE UP TO 09/2011) .
Disconnect negative BATTERY cable.
Remove INTAKE SILENCER HOUSING .
Remove firewall COVER , middle and right.
Remove RADIATOR .
Remove left PRESSURE PIPE .
Remove right PRESSURE PIPE .
Draw off A/C SYSTEM .
Remove front OUTPUT SHAFTS (AWD only).
Remove transmission. See AUTOMATIC TRANSMISSION (GA8HP70Z)or AUTOMATIC TRANSMISSION (GA8HP70Z) WITH AWD .

Open cover.

Release nut (1) underneath.

Tightening torque 12 52 4AZ .

Remove positive battery cable from battery positive terminal.

Fig 1: Identifying Positive Battery Cable, Battery Positive Terminal, And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut and screws (1).

Remove heat shield (2).

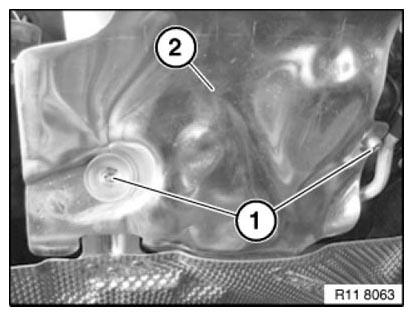

Fig 2: Identifying Heat Shield And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1) on DDE control unit.

Remove DDE control unit

Remove DDE equipment holder (2).

Fig 3: Identifying Wiring Harness And Electronics Box

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections on equipment holder (1) and remove in upward direction.

Fig 4: Identifying Supplementary Electronics Box

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Release A/C lines (2).

Installation note:

Replace O-rings and coat with refrigerant oil.

Tightening torque 64 53 3AZ .

IMPORTANT: If air conditioner has been opened for more than 24 hours, dryer flask must be replaced

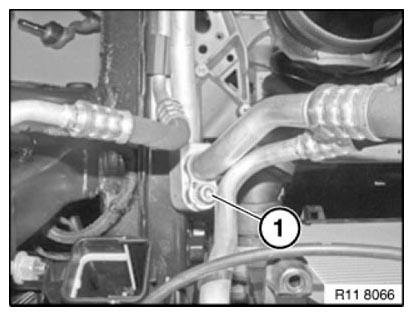

Fig 5: Identifying A/C Lines And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Release A/C line.

Installation note:

Replace O-ring and coat with refrigerant oil.

Tightening torque 64 53 1AZ .

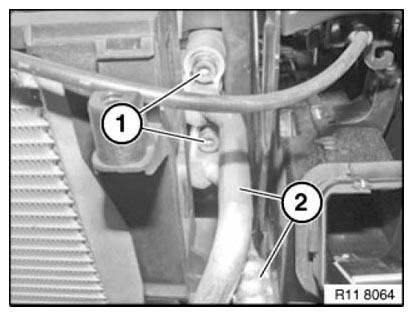

Fig 6: Identifying A/C Line Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release and disconnect coolant hoses (1).

Remove COOLANT EXPANSION TANK (2).

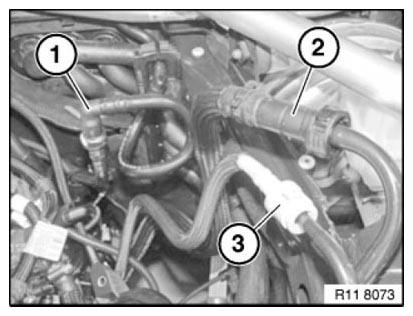

Fig 7: Identifying Coolant Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Release and disconnect coolant hoses (1).

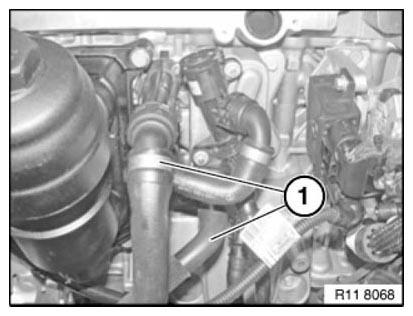

Fig 8: Identifying Coolant Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten hose clamp (1).

Pull off coolant hose (2) from water valve.

Disconnect pressure line (3) from power steering pump.

Fig 9: Identifying Hose Clamp, Coolant Hose, And Pressure Line

Courtesy of BMW OF NORTH AMERICA, INC.

17 2 050 Release hose clip with special tool.

Detach coolant hose (1).

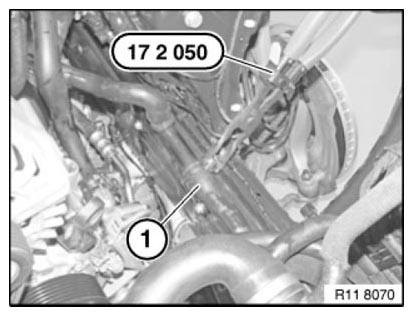

Fig 10: Detaching Coolant Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect vacuum line (1).

Unlock and disconnect fuel delivery line (2).

Unlock and disconnect fuel return line (3).

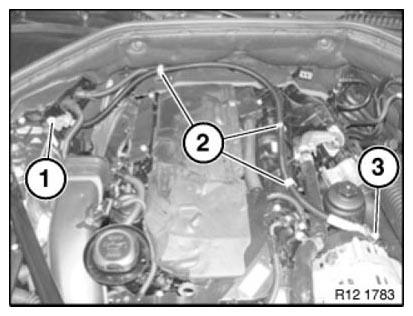

Fig 11: Identifying Vacuum Line, Fuel Delivery Line, And Fuel Return Line

Courtesy of BMW OF NORTH AMERICA, INC.

Release vacuum line (1) of engine mount.

Fig 12: Identifying Vacuum Line

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on engine mount on left and right. See applicable procedures for N57 engine in ENGINE MOUNTING .

Fig 13: Identifying Screws On Engine Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Suspend special tool from lifting eyes (1) at front and rear.

Lift out engine with special tool 11 0 070 .

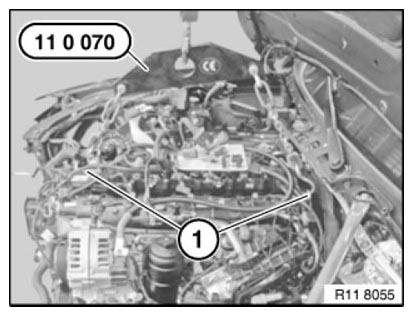

Fig 14: Lifting Out Engine Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

CHECK cooling system for tightness.
