11 12 000 Removing and installing/sealing cylinder head cover (N55)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove right TRAILING LINK
Release ENGINE WIRE HARNESS in the area of the cylinder head cover.
Disconnect PRESSURE LINES .
Remove CLEAN AIR PIPE .

Release screws (1).

Remove flange (2).

Installation note:

Renew sealing flange.

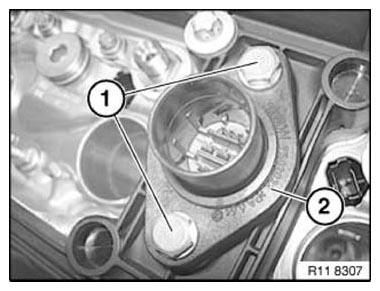

Fig 1: Identifying Flange And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

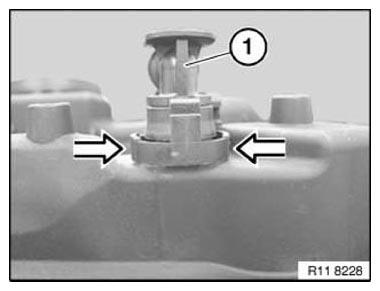

Press and hold down the unlocking device on the vacuum line (1) on the vacuum reservoir (cylinder head cover) in the direction of the arrow.

Detach vacuum line (1) in upward direction.

Fig 2: Pressing Vacuum Line Unlocking Device

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Do not loosen the engine vent line (4) on the cylinder head cover.

To dismantle the engine vent line, loosen the screws on the air intake system (3).

NOTE: When changing a faulty engine vent line, the clutch on the coupling on the cylinder head cover may be broken open.

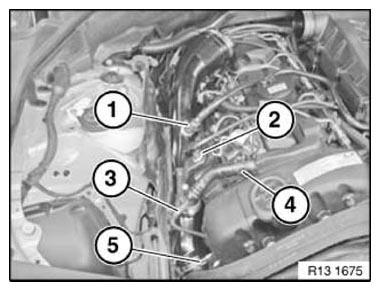

Fig 3: Identifying Air Intake System Screws And Engine Vent Line

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws of cylinder head cover from outside inwards in 1/2 turns.

Fig 4: Valve Cover Screws Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cylinder head cover.

Replace all gaskets.

Fit cylinder head cover.

Insert screws of the cylinder head cover by 1/2 turn.

Tighten fit screws (1) using 8.5 Nm.

Tighten positional screw (2) using 8.5 Nm.

Tighten remaining screws of cylinder head cover in sequence 3 to 23.

Tightening torque: 11 12 4AZ .

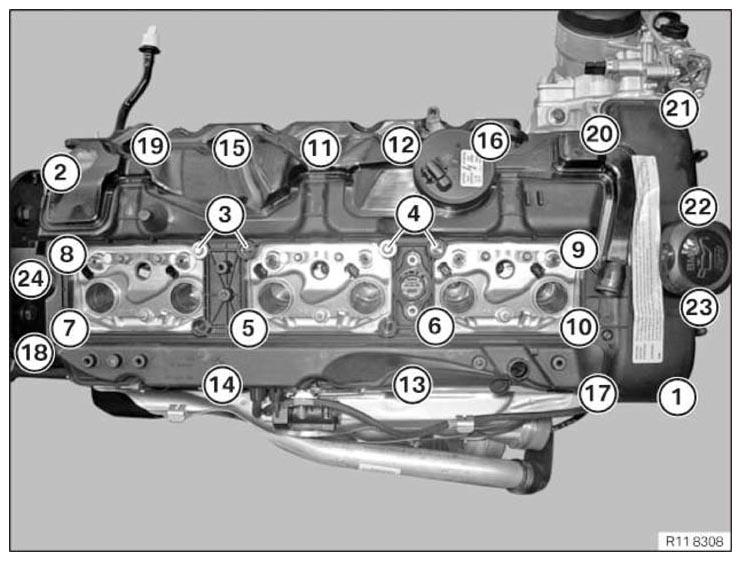

Fig 5: Valve Cover Screws Tightening/Loosening Sequence
