52 13 025 Removing and installing/replacing left or right seat mechanism (Normal)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

This job is described under:

Remove BACKREST FRAME on front seat

Replacement only:

Remove seat cover for front seat. See SEAT COVER (NORMAL SEAT) or SEAT COVER (SPORT SEAT) .
Remove SEAT BELT TENSIONER
Remove control units. See CONTROL UNIT FOR SEAT ADJUSTMENT and CONTROL UNIT FOR SEAT HEATING .

Seat mechanism is supplied complete with corresponding drive units.

Unlock plug housing (3) and remove from holder.

Disengage wiring harnesses from flexmat.

Installation:

Make sure wiring harnesses are laid correctly.

Observe bending radius and do not lay wiring harnesses tensioned.

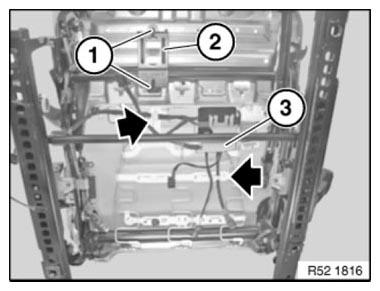

Fig 1: Locating Plug Housing With Screws And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 52 10 05AZ .

Remove holder (2) for control unit.

Release screw (1).

Tightening torque 52 10 03AZ .

Remove belt buckle deflector trim (2).

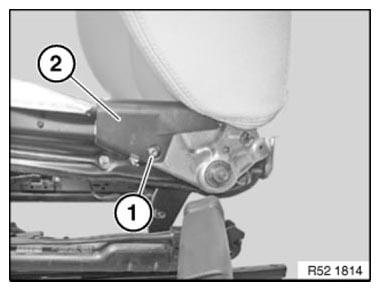

Fig 2: Identifying Belt Buckle Deflector Trim With Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Sport seat only:

Release screws (1).

Remove connection for thigh support.

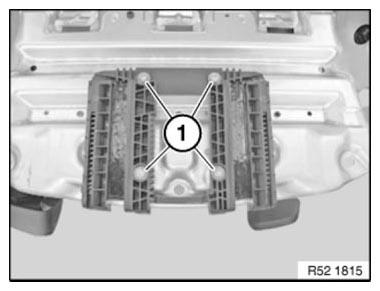

Fig 3: Identifying Sport Seat Screws

Courtesy of BMW OF NORTH AMERICA, INC.
