61 35 095 Removing and installing/replacing control unit/module for seat heating
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .
NOTE:
Move seat completely towards rear/top.

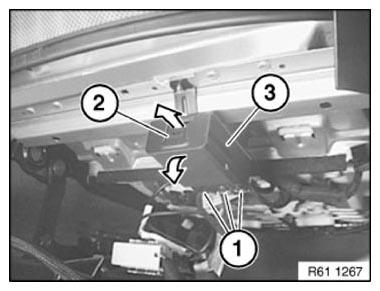

Disconnect plug connection (1).
Open lock (2) in direction of arrow and remove control unit/module for seat heating (3) towards bottom.
Installation:
Make sure control unit/module for seat heating (3) is correctly engaged.
