61 35 080 Removing and installing/replacing control unit/module for left or right seat adjustment

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

NOTE: Move seat completely towards rear/top.

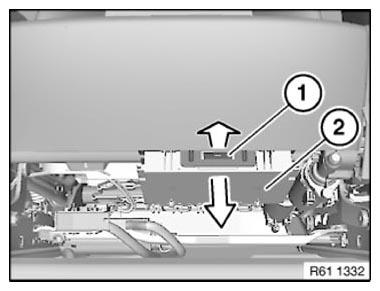

Unlock metal lug (1) towards front and remove control unit/module for seat adjustment (2) towards bottom.

Disconnect all associated plug connections.

Fig 1: Removing Seat Adjustment Control Unit/Module

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

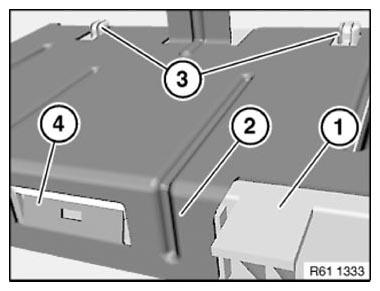

Make sure control unit/module for seat adjustment (1) is correctly seated in mounting (2).

Guides (3) and metal lug (4) must not be damaged.

Fig 2: Identifying Seat Adjustment Control Unit/Module, Mounting, Guides And Metal Lug

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
