32 33 010 Removing and installing/replacing sport steering wheel

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Wheel/chassis alignment is not necessary after the steering wheel has been removed and installed or replaced.

Necessary preliminary tasks:

Remove AIRBAG UNIT

Move wheels/steering wheel into straight-ahead position.

Unlock plug connections (1) and (2) and disconnect.

Release screw (3) and remove steering wheel.

Installation:

Make sure connecting lead(s) is/are correctly laid.

Tightening torque 32 33 1AZ .

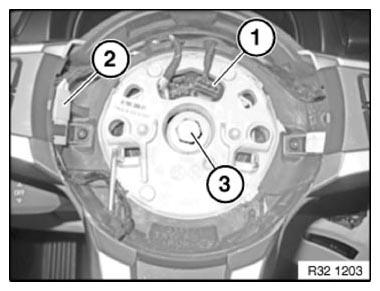

Fig 1: Identifying Plug Connections And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Align steering wheel using markings (arrows) to steering column and attach.

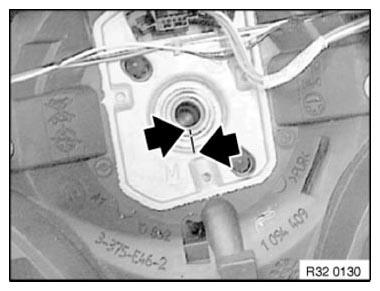

Fig 2: Locating Steering Wheel Markings

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, modify SHIFT PADDLES
If necessary, modify MULTIFUNCTION STEERING WHEEL SWITCH
