61 31 229 Removing and installing/replacing both switches on sport steering wheel

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove AIRBAG UNIT

NOTE: Both multifunction steering wheel switches (4) are connected to each other by the wiring harness (3).

Unfasten plug connection (1) and disconnect.

Unfasten screws (2).

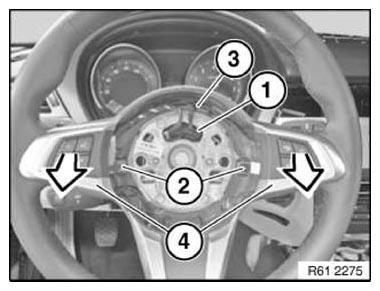

Fig 1: Removing Multifunction Steering Wheel Switches

Courtesy of BMW OF NORTH AMERICA, INC.

Feed wiring harness (3) out of steering wheel.

Remove multifunction steering wheel switches (4) in direction of arrow.

Installation:

Make sure electrical leads are correctly routed.
