61 31 113 Removing and installing/replacing both shift paddles for automatic transmission

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove BOTH SWITCHES FROM SPORT STEERING WHEEL

NOTE: For purposes of clarity.
Illustration shows steering wheel removed.

Release screws (1).

Disconnect plug connections (2).

Remove shift paddles for automatic transmission (3) in direction of travel.

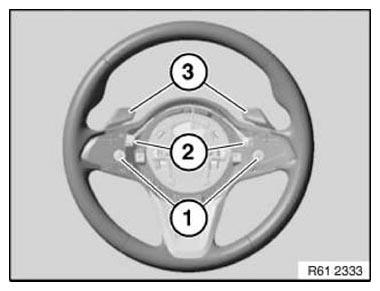

Fig 1: Identifying Automatic Transmission Shift Paddles, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure electrical leads are correctly routed.

Make sure shift paddles for automatic transmission (3) are correctly seated on steering wheel.
