51 16 365 Removing and installing/replacing glovebox cover

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove RIGHT GLOVEBOX WITH HOUSING
Remove DAMPER FOR GLOVEBOX

Release screws (1).

Remove glovebox housing (2).

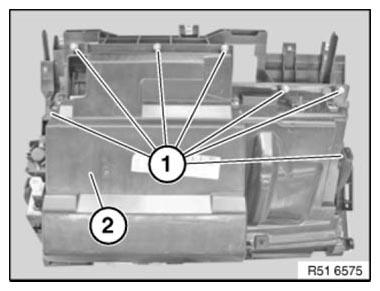

Fig 1: Identifying Glovebox Housing With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Drive out hinge axle (1) on left and right with a suitable tool.

Remove glovebox cover (2).

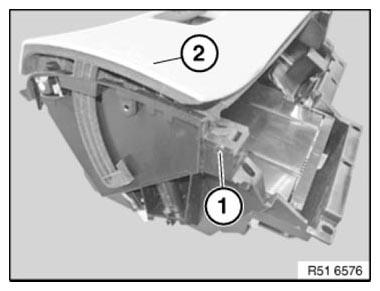

Fig 2: Identifying Glovebox Cover And Hinge Axle

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove GLOVEBOX LOCK
