51 16 340 Removing and installing/replacing lock for right glovebox

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Open glove compartment (2).

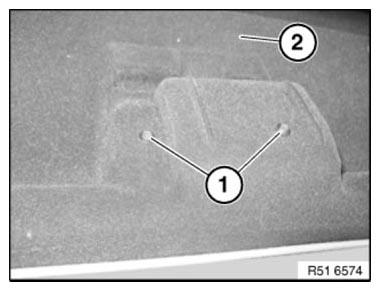

Release screws (1) on inside of glovebox (2).

Remove lock from glovebox (2).

Installation:

Carry out function check with glovebox open.

Fig 1: Identifying Glovebox With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Remove lock barrel.

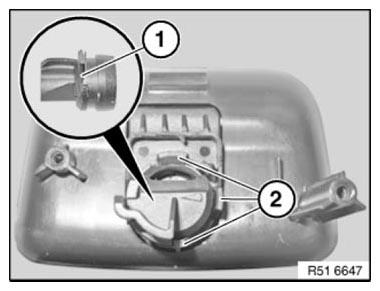

To do so, remove upper lock section (1) by expanding catches (2) with a suitable tool.

Fig 2: Identifying Upper Lock Section And Catches

Courtesy of BMW OF NORTH AMERICA, INC.

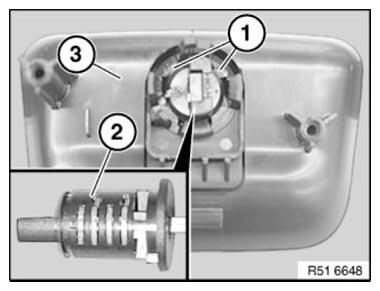

Slide lock barrel (2) out of glovebox lock (3) by expanding catches (1) with a suitable tool.

NOTE: The emergency key in the lock barrel prevents the lock wedges from falling out.

Fig 3: Identifying Lock Barrel With Catches And Glovebox Lock

Courtesy of BMW OF NORTH AMERICA, INC.
