51 16 166 Replacing center console

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove ACTUATOR DRIVE IN STORAGE COMPARTMENT

Additionally if telephone optional equipment installed:

Remove EJECT BOX

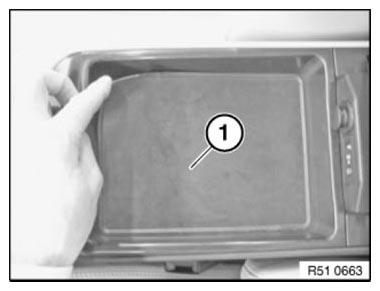

Raise mat insert (1) with suitable tool and remove.

Fig 1: Raising Mat Insert With Suitable Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove storage compartment (2).

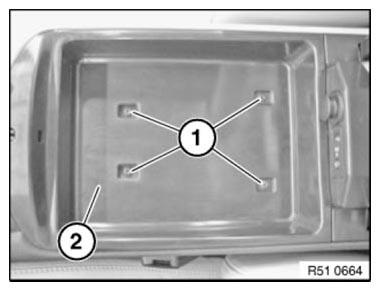

Fig 2: Identifying Storage Compartment With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

If telephone optional equipment installed:

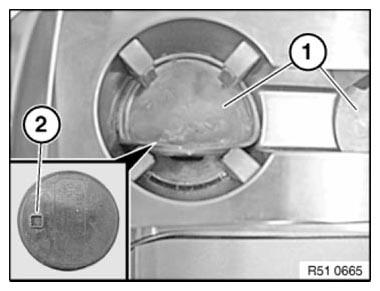

Raise both mat inserts (1) with suitable tool and remove.

Installation note:

Mat inserts (1) are installation-encoded (2). Note different diameters when installing.

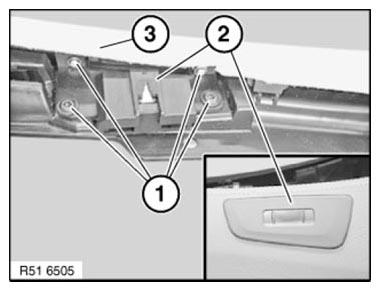

Fig 3: Identifying Installation-Encoded Mat Inserts

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove storage compartment (2) from center console (3).

Fig 4: Identifying Storage Compartment, Center Console With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove cover for drinks holder (2) and holder for drinks holder (2) from center console (3).

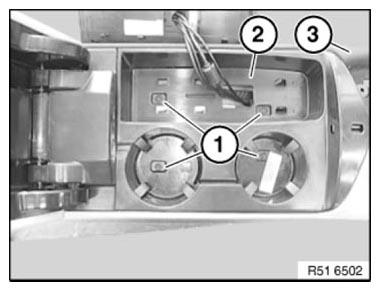

Fig 5: Identifying Cupholder, Center Console And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
