84 11 519 Removing and installing/replacing eject box

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove complete CENTER CONSOLE

Release cable tie (1).

Unlock retaining lugs (2).

Press eject box (3) upwards.

Installation:

Replace cable tie (1).

Retaining lugs must not be damaged.

Fig 1: Identifying Cable Tie, Eject Box And Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Remove eject box (1) upwards from center console (2).

Installation:

Ensure correct cable routing.

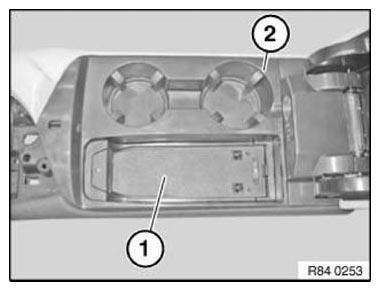

Fig 2: Identifying Eject Box And Center Console

Courtesy of BMW OF NORTH AMERICA, INC.
