67 11 610 Removing and installing/replacing servodrive in storage compartment

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CENTER CONSOLE .

Unlock plug socket (1) and feed out.

Release screws (3).

Remove servodrive (2).

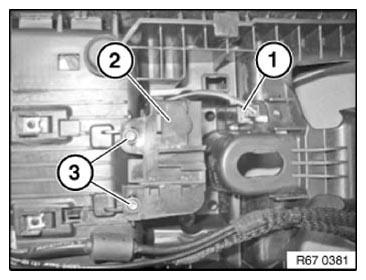

Fig 1: Identifying Servodrive Plug Socket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
