61 61 270 Removing and installing or replacing bracket for windscreen wiper system complete with motor
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove COWL PANEL COVER

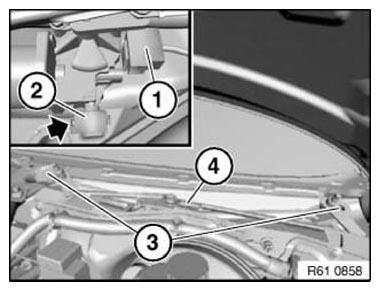

Unfasten plug connection (1) and disconnect.
Unclip and remove clamping lever (2).
Installation:
If necessary, replace clamping lever (2).
Release screws (3).
Tightening torque 61 61 1AZ .
Remove wiper bracket (4) upwards.
Installation:
Make sure wiper bracket (4) is exactly seated.
Installation:
Before fitting the wiper arms, allow the windscreen wiper motor to run into the rest position.
To ensure that the windshield wiper system functions properly, CHECK/ADJUST the contact angle of the wiper arms to the windshield.
