61 61 010 Checking/adjusting approach angle of windscreen wiper arms on front windscreen

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 220
00 9 331
61 6 100

NOTE: Wipe quality is improved by precise adjustment of CONTACT/APPROACH ANGLE of Wiper Arms.
Adjustment angle can be checked with special tool 00 9 331 or 61 6 100 .

Checking with setting gauge:

Before checking approach angle, briefly lift windscreen wiper arms off windscreen.

Place special tool 00 9 331 next to pivot point of wiper blade on windscreen.

Check light gap, adjust wiper arm if necessary.

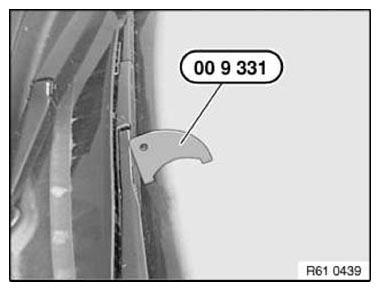

Fig 1: Checking Windscreen Wiper Arm Approach Angle Using Special Tool (00 9 331)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Tape off wiper arm with fabric adhesive tape to avoid damage.

Press special tools 00 9 220 in appropriate direction until correct contact/approach angle is obtained.

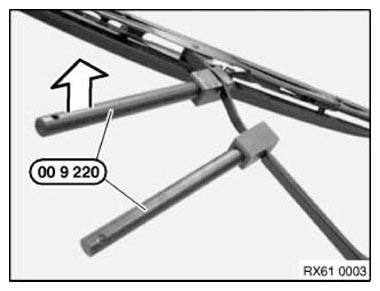

Fig 2: Pressing Special Tool (00 9 220)

Courtesy of BMW OF NORTH AMERICA, INC.

Checking with angulometer:

Remove wiper blades.

Insert windscreen wiper arm (1) in angle meter 61 6 100 .

Using screw (2) and pressure plate (3), locate windscreen wiper arm (1) and position on windscreen.

Read off value in degrees, adjust wiper arm if necessary.

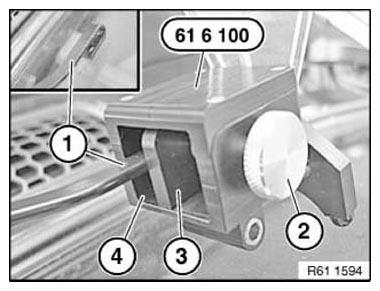

Fig 3: Inserting Windscreen Wiper Arm Into Angle Meter (61 6 100)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Windscreen wiper arm (1) must rest correctly on lower and side contact surfaces (4) of angle meter 61 6 100 .
On right-hand-drive cars, screw (2) must be located on left side of special tool 61 6 100.

Press special tools 00 9 220 in appropriate direction until correct contact/approach angle is obtained.

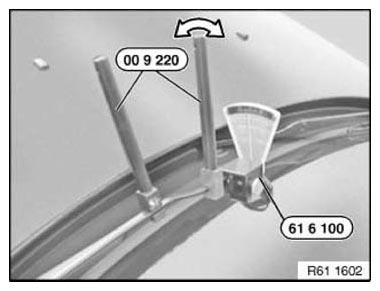

Fig 4: Pressing Special Tools (00 9 220) For Correct Approach Angle

Courtesy of BMW OF NORTH AMERICA, INC.
