33 41 153 Replacing left/right wheel bearing on rear axle shaft

Special tools required:

• 33 4 031
• 33 4 041
• 33 4 042
• 33 4 043
• 33 4 047
• 33 4 048
• 33 4 049

Necessary preliminary tasks:

• Remove DRIVE FLANGE FOR REAR AXLE SHAFT
• Detach WHEEL BEARING INNER RACE FROM DRIVE FLANGE .

Press retaining ring (1) together using pliers (2) and remove.

Installation:

Install retaining ring (1).

Check seating of retaining ring (1), correct if necessary.

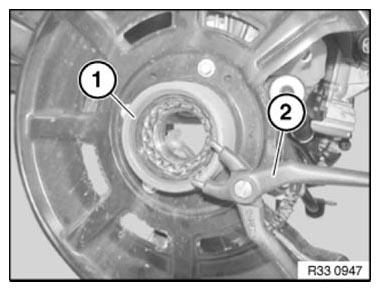

Fig 1: Pressing Circlip Ring Using Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out wheel bearing with special tools 33 4 031 , 33 4 041 , 33 4 042 , 33 4 043 and 33 4 048 .

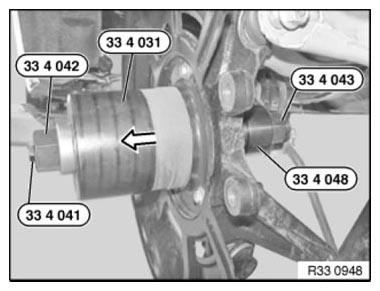

Fig 2: Pulling Out Wheel Bearing Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Draw in new wheel bearing (1) with special tools 33 4 041 , 33 4 042 , 33 4 043 , 33 4 047 and 33 4 049 .

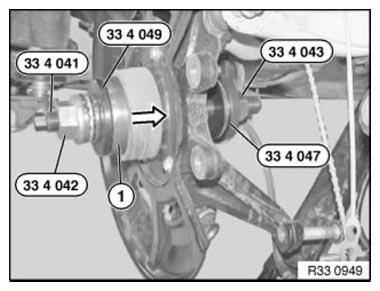

Fig 3: Installing Wheel Bearing Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.
