33 41 005 Replacing left/right drive flange on rear axle shaft

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

33 2 201
33 4 041
33 4 042
33 4 043
33 4 045
33 4 048
33 4 200

Remove REAR WHEEL .

IMPORTANT: Expand turning lock sufficiently to avoid damaging thread when releasing collar nut.

Release collar nut, activate parking brake for this purpose.

Fig 1: Locating Collar Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace collar nut, oil collar nut/wheel bearing contact surface lightly and tighten down.

No oil permitted on thread of shaft journal or collar nut.

Tightening torque 33 41 3AZ .

Secure collar nut by positive peening on flat areas of output shaft.

Remove output shaft. See REPLACING LEFT OUTPUT SHAFT or REPLACING RIGHT OUTPUT SHAFT .

Remove BRAKE DISC .

Remove PULSE GENERATOR .

IMPORTANT: Check sensor head and line from pulse generator prior to installation for external damage, replacing if necessary.

Force drive flange with special tools 33 2 201, 33 4 200 and 5 wheel bolts out of wheel bearing.

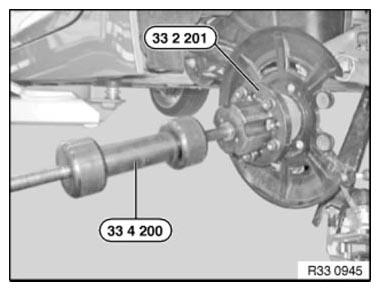

Fig 2: Removing Drive Flange Using Special Tools (33 2 201 And 33 4 200)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The wheel bearing is destroyed when the drive flange is removed and cannot be reused!

Replace wheel bearing. See REPLACING LEFT/RIGHT WHEEL BEARING ON REAR AXLE SHAFT .

Installation:

Draw in drive flange (1) with special tools 33 4 041 , 33 4 042 , 33 4 043 , 33 4 045 and 33 4 048 .

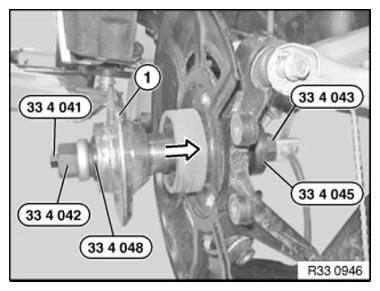

Fig 3: Installing Drive Flange Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.
