64 12 300 Removing and installing/replacing complete electric auxiliary heater - 3rd seat row -

Necessary preliminary tasks

The following operations are shown with the 3rd seat row removed.

Detach Starlock washer (1) from holding rod (2).

Installation:

If necessary, replace defective Starlock washer (1).

Make sure Starlock washer (1) is correctly seated on holding rod (2).

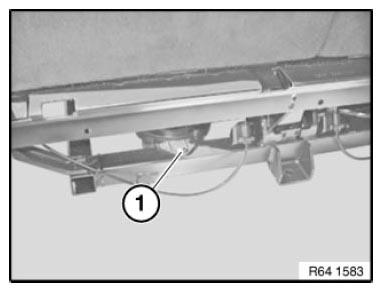

Fig 1: Identifying Starlock Washer And Holding Rod

Courtesy of BMW OF NORTH AMERICA, INC.

Slide holding rod (1) in direction of arrow out of guides and tilt seat cushion (2) forwards.

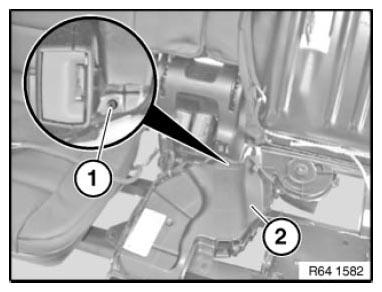

Fig 2: Sliding Holding Rod From Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

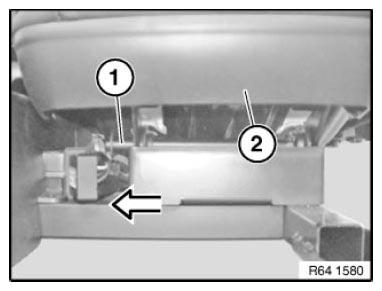

Fig 3: Identifying Seat Cushion Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and remove heater (2).

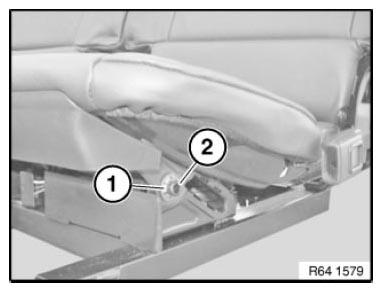

Fig 4: Identifying Heater And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
