61 35 065 Removing and installing (replacing) A/C control unit - 3rd seat row

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks

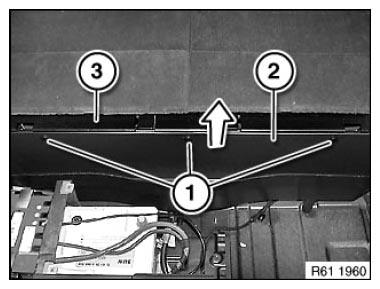

Release expansion rivets (1).

Remove storage compartment (2) in direction of arrow from 3rd seat row (3).

Fig 1: Removing Storage Compartment From 3rd Seat Row

Courtesy of BMW OF NORTH AMERICA, INC.

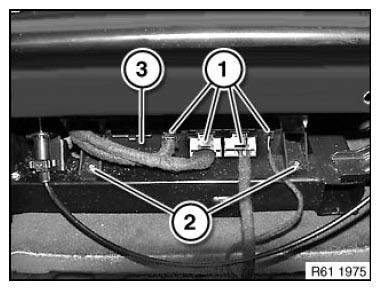

Disconnect plug connection (1).

Release screws (2).

Remove A/C control unit - 3rd seat row - (3).

Fig 2: Identifying Plug Connection, Screws A/C Control Unit (3rd Seat Row)

Courtesy of BMW OF NORTH AMERICA, INC.
