51 16... Removing and installing/replacing center console for 3rd seat row

Version with heating/ventilation for 3rd seat row:

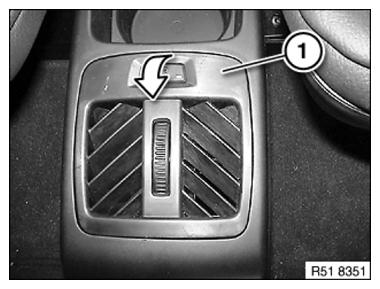

Unclip trim (1) in direction of arrow.

Fig 1: Removing Centre Console Trim

Courtesy of BMW OF NORTH AMERICA, INC.

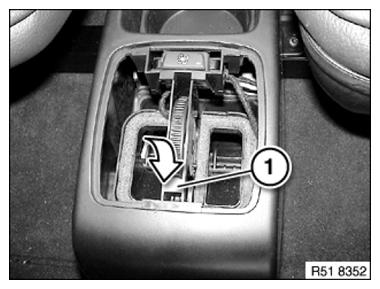

Unclip rib for heating control (1) in direction of arrow.

Fig 2: Removing Centre Console Heating Control Rib

Courtesy of BMW OF NORTH AMERICA, INC.

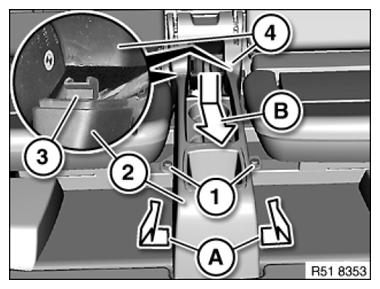

Release screws (1) and raise center console (2) slightly in direction of arrow (A).

Unclip retaining tabs (3) of center console (2) from trim (4) in direction of arrow (B).

Remove center console (2).

Fig 3: Removing Centre Console

Courtesy of BMW OF NORTH AMERICA, INC.
