51 11 050 Removing and installing/replacing support for front bumper trim

Necessary preliminary work

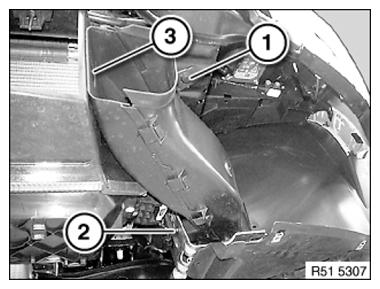

Partially detaching brake air duct (depending on engine version):

Release expansion rivet (1).

Release screw (2).

Release latch mechanism (3).

Fig 1: Identifying Expansion Rivet, Latch Mechanism And Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

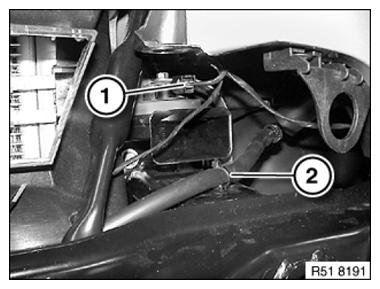

Disconnect plug connection (1) on fanfare horn on left/right

If necessary, release hose support (2) for headlight cleaning system.

Fig 2: Identifying Plug Connection And Hose Support

Courtesy of BMW OF NORTH AMERICA, INC.

Version with Park Distance Control (PDC):

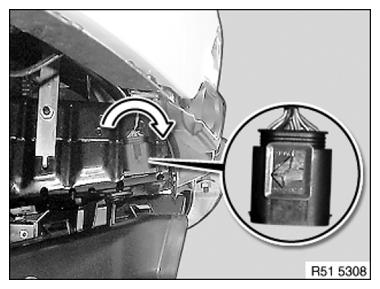

Release plug connection on right inside of support by turning through 45°.

Fig 3: Turning Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

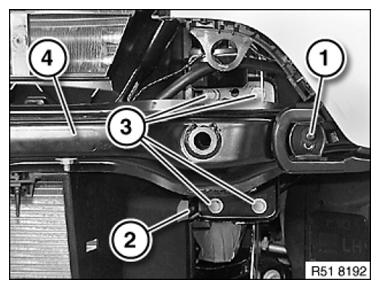

Release screws (1 and 2) on left/right.

IMPORTANT: Before releasing screws (3), make sure support (4) is supported by a 2nd person helping.

Release screws (3) on left and right and feed out support (4) in downward direction.

Tightening torque 51 11 2AZ .

Fig 4: Identifying Front Bumper Trim Support And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

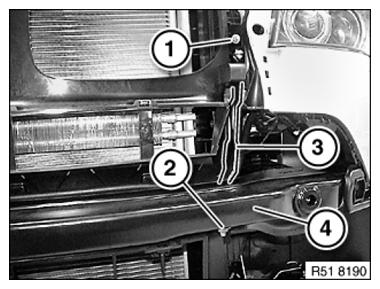

Release nuts (1 and 2) on strut (3) on left/right.

Installation note:

When installing support (4), make sure struts (3) on left and right are correctly fed in.

Tightening torque 51 11 5AZ .

Fig 5: Identifying Front Bumper Trim Support, Struts And Mounting Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Remove fanfare horns (1).

Fig 6: Identifying Fanfare Horns

Courtesy of BMW OF NORTH AMERICA, INC.
