51 11 156 Removing and installing front bumper trim (from 03/2010)

IMPORTANT: Risk of mixing up
Different screws fitted.

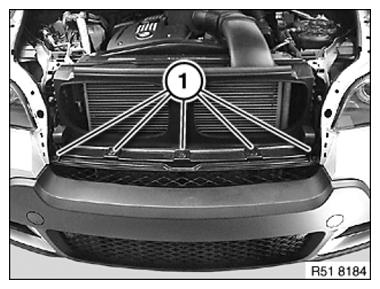

Release screws (1).

Fig 1: Identifying Front Bumper Trim Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

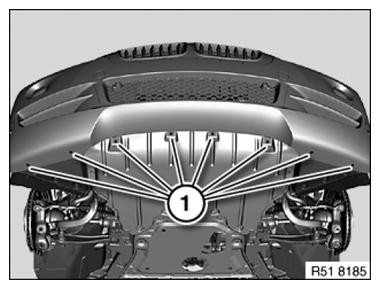

Release screws (1).

Fig 2: Identifying Front Bumper Trim Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

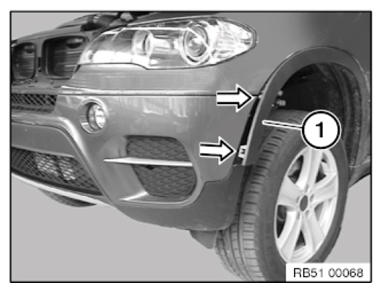

Loosen screws (1) on the right and left of the wheel arch cover (2).

Installation note:

Make sure wheel arch cover (2) is in correct position.

Fig 3: Identifying Wheel Arch Cover And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip wheel arch cover (1) at front on left and right.

Fig 4: Removing Wheel Arch Cover

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Bumper trim (1) is locked at sides in fixture and must be unlocked for removal purposes (risk of damage).

Removing

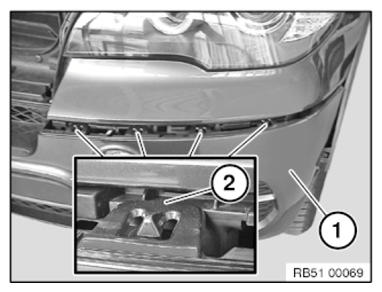

Fig 5: Identifying Bumper Trim And Guide Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Beginning on the outside, carefully disengage individual guide tabs (2) on left and right
With the aid of another person, pull bumper trim (1) forward slightly, (if necessary, unlock and detach plug connection for Park Distance Control (PDC), plug connection for Side View camera left/right and plug connection for fog light left/right).

Remove bumper trim (1) towards front with aid of a 2nd person.

Installation note:

Guide tabs (1) must not be damaged!

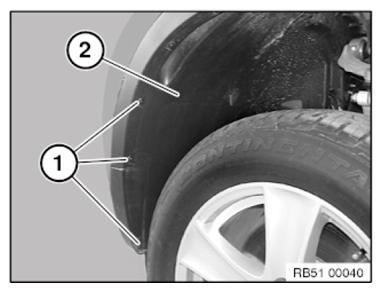

Fig 6: Identifying Bumper Trims

Courtesy of BMW OF NORTH AMERICA, INC.
