51 16 213 Replacing trim for storage compartment

Necessary preliminary tasks:

• Remove TRIM FOR STORAGE TRAY .
• Modify INSERT FOR CENTER CONSOLE .
• M3: MODIFY switch block.

Version with controller:

• Modify CONTROLLER .

E93 only:

• Modify SWITCH FOR CONVERTIBLE TOP OPERATION .

Version without controller:

Carefully release catches (1) and remove storage tray (2).

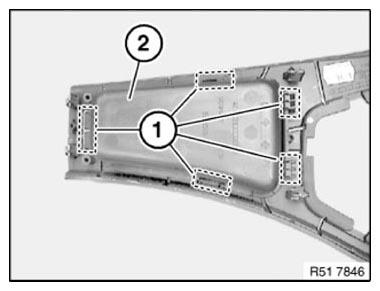

Fig 1: Identifying Catches And Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.
