61 30 020 Removing and installing/replacing switch block (M3)

Necessary preliminary tasks:

If necessary, remove socket housing (1) from holder (2).

Unlock catches (3) and feed switch block (4) in direction of arrow out of storage compartment trim (5).

Installation:

Make sure switch block catch (4) engages correctly in storage compartment trim (5).

If necessary, make sure socket housing (1) is correctly seated in holder (2).

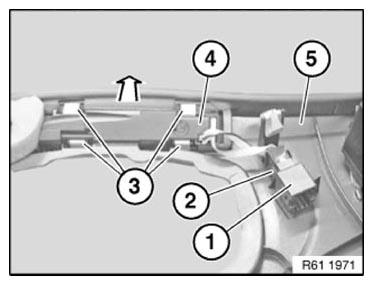

Fig 1: Removing Socket Housing From Holder

Courtesy of BMW OF NORTH AMERICA, INC.
