61 31 078 Removing and installing/replacing switch for convertible top operation

Necessary preliminary tasks:

• Remove TRIM FOR STORAGE COMPARTMENT

Release screws (1).

Remove switch (2) from trim (3).

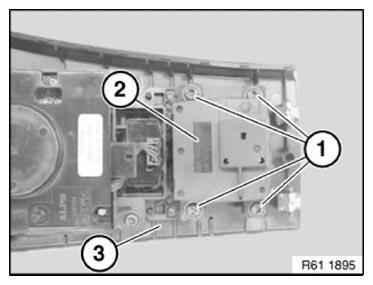

Fig 1: Identifying Switch, Trim And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
