65 50 030 Removing and installing/replacing TV module
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION)
.
NOTE:
Follow notes for HANDLING OPTICAL FIBRES
.
Necessary preliminary tasks:
- Disconnect BATTERY EARTH LEAD
- Remove FLAP IN LUGGAGE COMPARTMENT TRIM PANEL ON LEFT
Version with DVD changer
- Remove DVD CHANGER

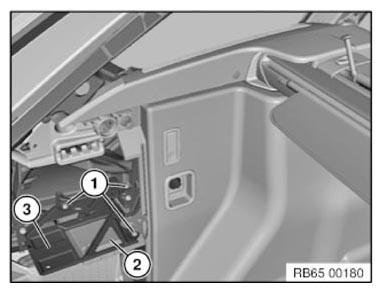

Release screws (1).
Unlock associated plug connections and disconnect.
Remove TV module (2) from holder (3).
