61 20 900 Disconnecting and connecting battery earth lead

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe the SAFETY INFORMATION for handling the battery!
Follow instructions FOR DISCONNECTING AND CONNECTING BATTERY !
Observe notes on POWER SUPPLY/INTELLIGENT BATTERY SENSOR (IBS) .

Necessary preliminary tasks:

Remove BATTERY COVER

NOTE: With lead-acid battery (F2x only).

Loosen nut (1).

Tightening torque 61 21 1AZ .

IMPORTANT: Do not under any circumstances use force to pull off negative terminal.

Pull off battery earth lead (2) and IBS in an upward direction, place to one side and secure.

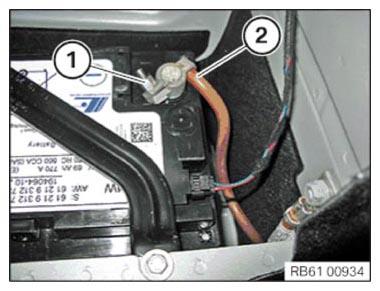

Fig 1: Identifying Battery Earth Lead And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: With lead-acid battery (F3x only).

Loosen nut (1).

Tightening torque 61 21 1AZ .

IMPORTANT: Do not under any circumstances use force to pull off negative terminal.

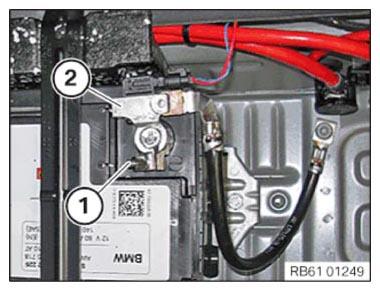

Fig 2: Identifying IBS And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off battery negative lead and IBS (2) in an upward direction, place to one side and secure.

NOTE: For lithium ion battery (only F8x).

Loosen nut (1).

Tightening torque 61 21 1AZ .

IMPORTANT: Do not under any circumstances use force to pull off negative terminal.

Pull negative battery cable (2) up and off, place to one side and secure.

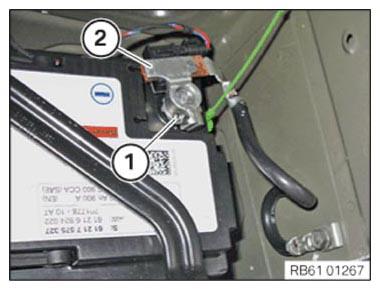

Fig 3: Identifying Negative Battery Cable And Nut

Courtesy of BMW OF NORTH AMERICA, INC.
