65 11 075 Removing and installing/replacing DVD changer

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with NOTES on protection against electrostatic damage (ESD protection).

NOTE: Comply with notes and notes on HANDLING OPTICAL FIBRES .

Necessary preliminary tasks:

Disconnect BATTERY EARTH LEAD
Remove FLAP IN LUGGAGE COMPARTMENT TRIM PANEL ON LEFT

Release screws (1).

Slightly pull out DVD changer (2) and unlock and disconnect related plug connection.

Remove DVD changer (2).

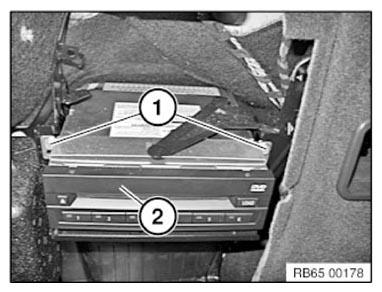

Fig 1: Identifying DVD Changer Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release left and right screws (1).

Remove retaining bracket (2) from DVD changer.

Fig 2: Identifying DVD Changer Retaining Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
