65 12 071 Removing and installing or replacing amplifier

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with NOTES on protection against electrostatic discharge (ESD protection).

NOTE: Comply with notes and notes on HANDLING OPTICAL FIBRES .

Necessary preliminary tasks:

Disconnect BATTERY EARTH LEAD
Remove STORAGE TRAY FOR FIRST AID KIT

Slacken nut (1).

Unlock plug connections (2) and disconnect.

Slide amplifier (3) with holder in direction of arrow and feed out in upward direction.

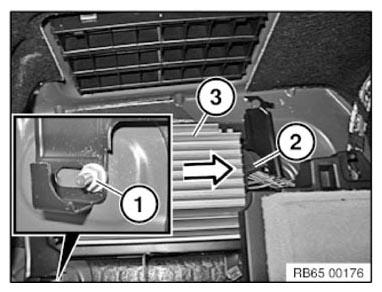

Fig 1: Sliding Amplifier With Holder

G10154286

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert holder (1) correctly into guide (2).

Make sure amplifier (3) is correctly seated.

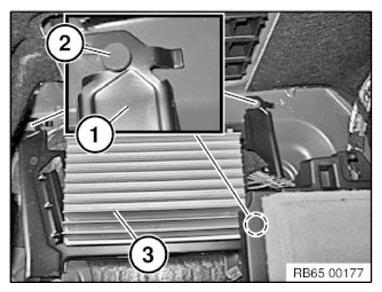

Fig 2: Identifying Holder, Guide And Amplifier

G10154287

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screw (1).

Pull amplifier (2) out of holder (3) in direction of arrow.

Fig 3: Pulling Amplifier Out Of Holder

G10099010

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Lugs (1) must be correctly slid into guide (2).

Check that amplifier (3) is securely seated.

Fig 4: Identifying Tabs, Guide And Amplifier

G04797335

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

In Harman Kardon version, perform VEHICLE PROGRAMMING AND ENCODING .
