51 47... Removing and installing/replacing storage compartment for first-aid kit and warning triangle

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove FLAP IN LUGGAGE COMPARTMENT TRIM PANEL on left

Version with automatic luggage compartment lid actuation:

Pull out electric motor (1) from fixture (2).

Fig 1: Electric Motor And Fixtures

Courtesy of BMW OF NORTH AMERICA, INC.

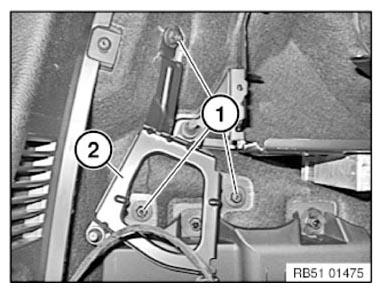

Unscrew nuts (1).

Take off holder (2).

Fig 2: Storage Compartment Holder And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

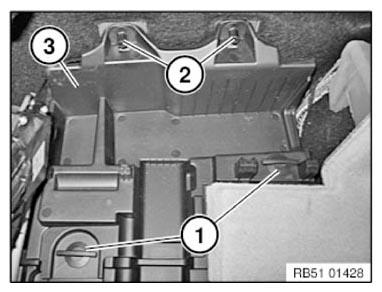

Release clips (1) and nuts (2).

Lift out storage compartment (3).

Fig 3: Storage Compartment Clips And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
