51 24 130 Removing and installing/replacing striker for tailgate lock
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove TRIM FOR REAR LID
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

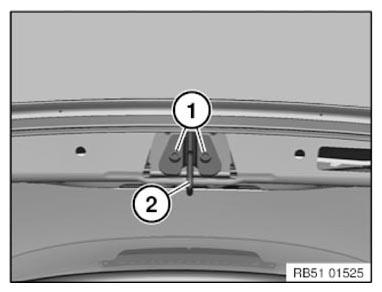

Release screws (1).
Tightening torque: 51 24 8 AZ .
Feed out striker (2) for tailgate lock.
Installation note:
Adjust REAR LID LOCK .
IMPORTANT:
Striker and tailgate lock must not be greased.
