51 24 004 Adjusting rear lid lock

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Prerequisite:

Tailgate must be correctly adjusted, refer to BODY GAP DIMENSIONS .

Completely screw in stop pad (1) left/right.

See REMOVING AND INSTALLING/REPLACING BUMP STOPS ON TAILGATE .

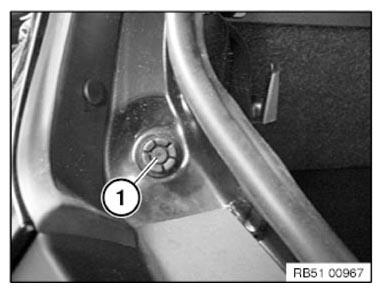

Fig 1: Stop Pad

G09948313

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cover (1) from the lock strap (2) and set aside.

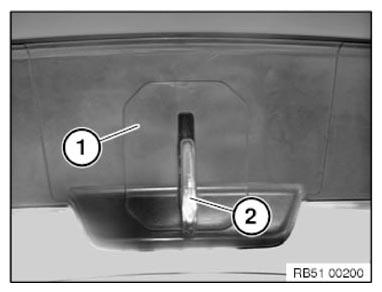

Fig 2: Rear Lid Lock Strap And Cover

G09948314

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken screws (1) until striker (2) can still just be moved and centers itself.

Close rear lid.

Adjust tailgate to NOMINAL DIMENSIONS .

Tighten down screws (1).

Tightening torque: 51 24 2 AZ .

NOTE: When the tailgate is closed, the striker must not touch or scrape against the rear lid lock. Look out for scratch marks.

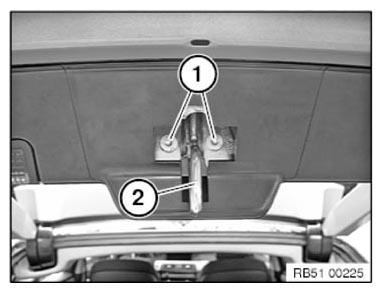

Fig 3: Rear Lid Lock Striker And Screw

G09948315

Courtesy of BMW OF NORTH AMERICA, INC.

Screw out stop pad (1) left/right until they are in contact with the tailgate.

It must be possible to pull out paper strips with moderate friction resistance between the tailgate and stop pad (1).

Then screw out stop pad (1) one-half rotation further.

See REMOVING AND INSTALLING/REPLACING BUMP STOPS ON TAILGATE .

Fig 4: Stop Pad

G09948313

Courtesy of BMW OF NORTH AMERICA, INC.
