51 24 105 Removing and installing/replacing rear lid lock

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove TOP COVER FROM TAIL PANEL

Unlock plug connection (1) and disconnect.

Unhook Bowden cable (2) on tailgate lock (3).

Fig 1: Tailgate Lock, Bowden Cable And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect associated plug connection and release screws (1).

Tightening torque: 51 24 1 AZ .

Feed out rear lid lock (2) in direction of arrow.

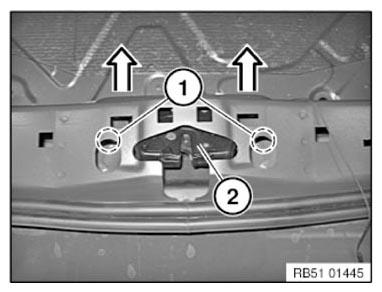

Fig 2: Pulling Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Perform a function check of tailgate lock with the tailgate open.

Concluding tasks:

ADJUST REAR LID LOCK
