51 43 320 Removing and installing/replacing trim panel for D-pillar left (right)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

When working on trim panel components, make sure that visible surfaces are not scratched or damaged.

Necessary preliminary work:

REMOVE trim panel for roof pillar at rear(C-pillar)

Left side:

Remove FLAP IN LUGGAGE COMPARTMENT TRIM PANEL on left

Right side:

Remove LUGGAGE COMPARTMENT TRIM PANEL ON RIGHT SIDE WALL

Release screws (1) and (2).

Release clip (3) from trim panel (4) using special tool 00 9 325 .

Disconnect plug connection of luggage compartment light and feed out the trim panel (4).

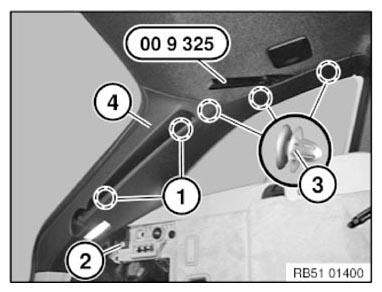

Fig 1: Releasing Clip From Trim Panel Using Special Tool (00 9 325)

G10153845

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clips (1) and marked guides must not be damaged or missing.

If necessary, replace faulty clips (1).

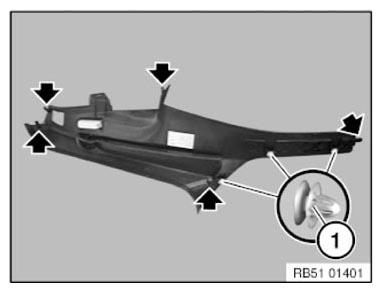

Fig 2: Clips

G10153846

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Lip of edge protection (1) in area of trim panel (2) must not be trapped, feed out if necessary.

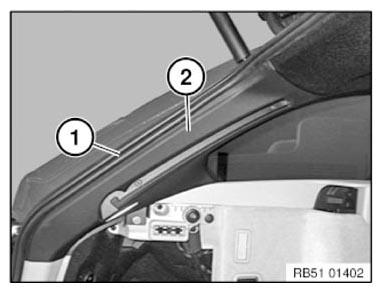

Fig 3: Trim Panel And Edge Protection Lip

G10153847

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Modify LUGGAGE COMPARTMENT LIGHT
