63 31 080 Removing and installing/replacing luggage compartment light

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 020

IMPORTANT: Follow instructions for HANDLING LIGHT BULBS (INTERIOR LIGHTING) .

Left/right luggage compartment trim panel:

Lever out luggage compartment light (1) using special tool 64 1 020 in direction of arrow.

Disconnect plug connection underneath and remove luggage compartment light (1).

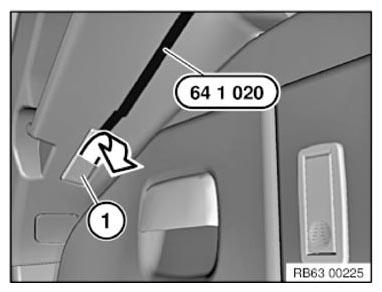

Fig 1: Removing Luggage Compartment Light

G10168334

Courtesy of BMW OF NORTH AMERICA, INC.

Left/right tailgate:

Lever out luggage compartment light (1) using special tool 64 1 020 in direction of arrow.

Disconnect plug connection underneath and remove luggage compartment light (1).

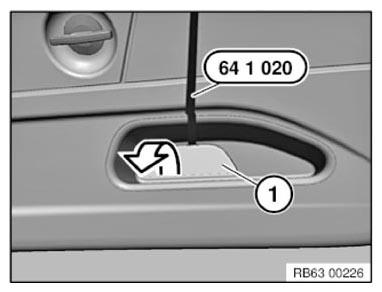

Fig 2: Removing Luggage Compartment Light

G10168335

Courtesy of BMW OF NORTH AMERICA, INC.

center tailgate:

Lever out luggage compartment light (1) using special tool 64 1 020 in direction of arrow.

Disconnect plug connection underneath and remove luggage compartment light (1).

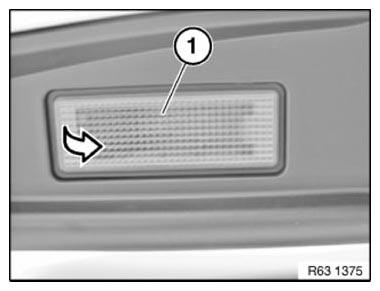

Fig 3: Removing Luggage Compartment Light

G09929196

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Convert bulb if necessary, note bulb type.
