51 71 115 Replacing seal on left or right front door

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Follow REPAIR INSTRUCTIONS for bonded seals.

Necessary preliminary work:

If necessary, remove sealing on front door
Remove COVER ON INSIDE DOOR WINDOW FRAME
Release DOOR STOP FROM DOOR PILLAR
Affix TEMPLATES FOR SEALING on inner door panel

IMPORTANT:

After disengaging door stop, use suitable means of preventing door from opening past its maximum permissible opening angle (risk of damaging paintwork or bodywork)
Do not touch the bonding surface and make sure it is kept perfectly clean
Do not overstretch or compress the seal when positioning it
Maximum permissible sag of seal during positioning process 30 mm
Always apply pressure perpendicular to the bonding surface to affix the seal
It is the contact pressure applied (approx. 10... 15 N/cm² ) that is decisive for a good bond, not the length of time over which pressure is maintained.
Only after being pressed on gently , the seal can still be peeled off and repositioned up to 3 times
Disengaging the seal after it has been pressed on firmly destroys the adhesive bond.

Suspend seal (1) with open lip pointing inwards over door.

Remove protective film around color coding (positioning aid).

Position seal (1) with color coding at the top front on the window frame.

Glue seal as follows:

Follow the gluing sequence described below
Gradually peel off protective film and lightly press seal (1) into position on inner door panel
Check position of seal (1); correct if necessary until positioning is perfect
Apply firm pressure to seal (1).

Fig 1: Seal
Courtesy of BMW OF NORTH AMERICA, INC.

Gluing sequence:

Along window frame to start of template
From door post to entrance area
Rest of door area

Positioning seal:

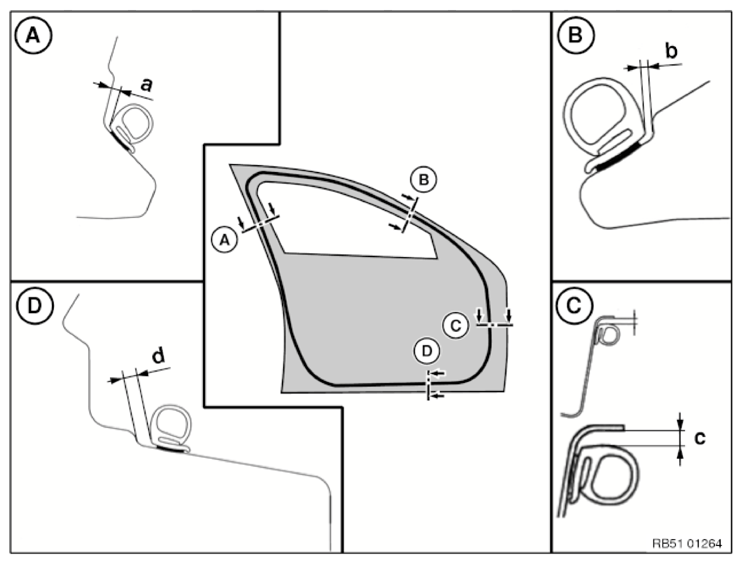

Fig 2: Rubber Profile And Sheet Metal Edge Distance

Courtesy of BMW OF NORTH AMERICA, INC.

Position	Distance between rubber profile and sheet metal edge (in mm)
a	3, 3
b	2, 1
C	6, 2
d	5, 7

Positioning seal along templates:

Edge of adhesive tape (2) is aligned with cut edge of template (3).

Seal
Adhesive tape of seal
Template

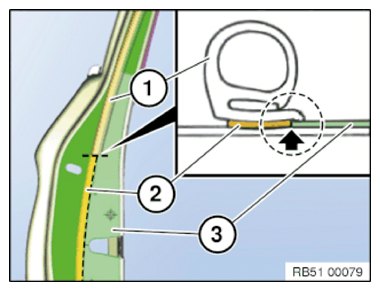

Fig 3: Front Door Templates
Courtesy of BMW OF NORTH AMERICA, INC.

Concluding tasks:

Remove all templates
