51 32 420 Removing and installing/replacing trim cover on front door window frame, left or right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Open side window
Remove WEATHER STRIP
Remove COVER ON DOOR WINDOW FRAME

Pull rubber window seal (1) out of rear window guide.

Unfasten screws (2).

Push cover (3) down slightly and unfeed rubber window seal (1) toward the top.

Then feed cover (3) upward out of the door.

Installation note:

if necessary, replace faulty plastic nuts for screws (2).

Wet rubber window seal (1) prior to fitting with APPROVED LUBRICANT .

Make sure rubber window seal (1) is correctly seated on cover (3).

Fig 1: Rubber Window Seal And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Sealing (1) on cover (2) must not be damaged or missing.

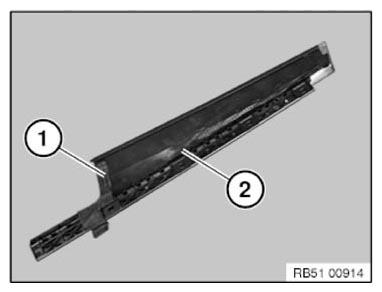

Fig 2: Door Window Frame Sealing And Cover

Courtesy of BMW OF NORTH AMERICA, INC.
