51 11 770 Removing and installing/replacing left or right deformation element for front bumper panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

REMOVE support for front bumper panel
Remove the SUPPORT FOR THE FRONT BOTTOM BUMPER PANEL
Remove air intake silencer housing . See 13 71 000 REMOVING AND INSTALLING/REPLACING INTAKE SILENCER HOUSING (N47 D16/20 K/U/O/T 1) or 13 71 000 REMOVING AND INSTALLING/REPLACING THE INTAKE SILENCER HOUSING (N20, N26) .

F23 and F33 only:

Remove front-end strut

Release screws (1).

Tightening torque: 51 23 1AZ .

Unfasten screws (2).

Tightening torque: 51 11 14AZ .

Lay the engine compartment lock (3) on the top.

Fig 1: Engine Compartment Lock Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection and cable clip from fanfare if necessary.

Release screw (1).

Tightening torque: 51 11 7AZ .

Release screws (3).

Tightening torque: 51 11 3AZ .

Release screw (4).

Tightening torque: 51 11 6AZ .

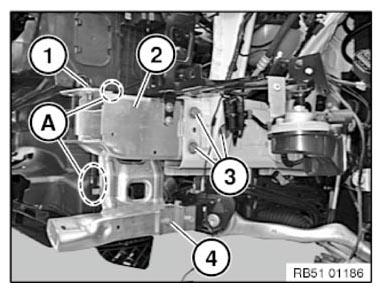

Detach deformation element (2) from air duct in area (A) and feed out.

Fig 2: Air Duct Area, Deformation Element And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1) on both sides and remove bracket (2).

Tightening torque: 51 11 2AZ .

Release screws (3) and remove lower deformation element.

Tightening torque: 51 11 5AZ .

When replacing lower deformation element:

Release blind rivet from damper (4).

Fig 3: Bumper Lower Deformation Element, Bracket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
