51 47 480 Removing and installing/replacing left (right) capping trim panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

The operation is described for the left-hand side; proceed in the same way for the right-hand side.

Necessary preliminary work:

Remove the roller cover
Remove load area net
Fold rear seat backrest forward
Remove D-PILLAR TRIM PANEL
Remove BACKREST SIDE SECTION FROM REAR SEAT

Release expanding rivet (1) and screws (2).

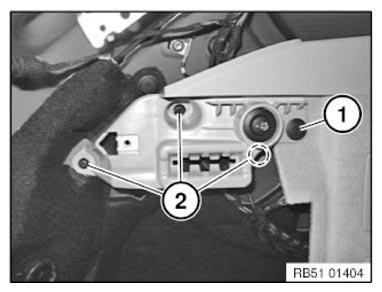

Fig 1: Capping Trim Panel Rivet And Screws

G10153892

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove cover (2) and feed seat belt out of trim panel (3).

Raise trim panel (3) slightly and disconnect associated plug connections.

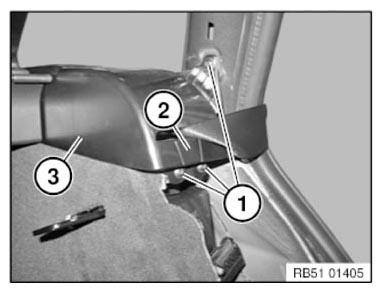

Fig 2: Trim Panel Cover And Screws

G10153893

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out trim panel (1) on holder (2) for roller cover.

Remove trim (1) in direction of arrow.

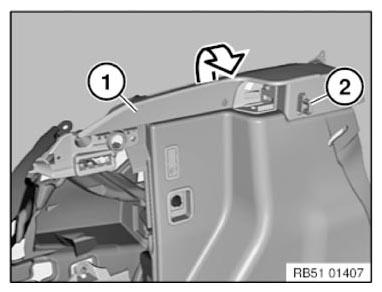

Fig 3: Removing Roller Cover Trim Panel

G10153894

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Catch (1) and guides (2) of trim panel (3) must not be damaged or missing.

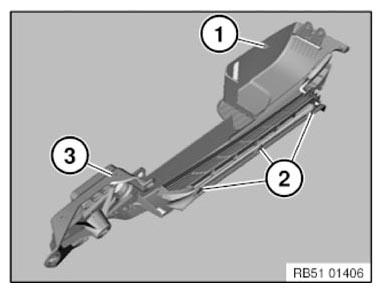

Fig 4: Trim Panel Catch And Guides

G10153895

Courtesy of BMW OF NORTH AMERICA, INC.
