11 00 050 Remove and install the engine (N47)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 0 020

Necessary preliminary tasks:

Move ENGINE COMPARTMENT LID into service position.
Remove transmission.
REMOVE acoustic cover at rear
Remove clean air pipe . See 13 71 150 REMOVING CLEAN AIR PIPE (N47) or 13 71 150 REMOVING CLEAN AIR PIPE (N47 WITH SCR) .
Drain COOLANT .
Disconnect all coolant hoses including heater hoses from engine.
Remove left pressure pipe .
Remove right pressure pipe .
Loosen the electronics box and place on engine. See 12 14 550 REPLACING ELECTRONICS BOX (N47) or 12 14 550 REPLACING CONTROL UNIT BOX (N47 WITH SCR) .
RELEASE A/C COMPRESSOR AND PLACE TO ONE SIDE .
Remove DIESEL PARTICULATE FILTER .

Recycling:

Catch and dispose of escaping fuel with auxiliary materials.

Observe country-specific waste disposal regulations.

Unlock lock (1) and slightly raise service cover (2) until lock of cover (3) is accessible.

Unlock lock and remove cover (3).

Fig 1: Service Cover From Rubber Mount

G10099969

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque: 12 42 4AZ .

Remove positive battery cable from battery positive terminal.

Fig 2: Positive Battery Cable And Slacken Nut

G10099970

Courtesy of BMW OF NORTH AMERICA, INC.

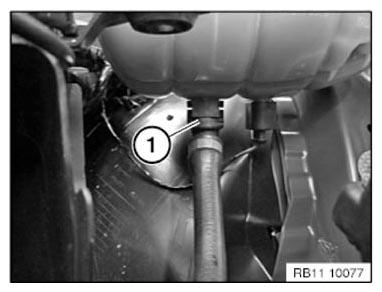

Unlock and detach coolant hose (1) from expansion tank.

Fig 3: Coolant Hose

G10099971

Courtesy of BMW OF NORTH AMERICA, INC.

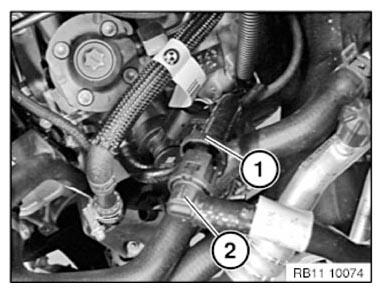

Unlock quick-release fastener (1) and pull out vacuum line (2).

Fig 4: Quick-Release Fastener And Vacuum Line

G10099972

Courtesy of BMW OF NORTH AMERICA, INC.

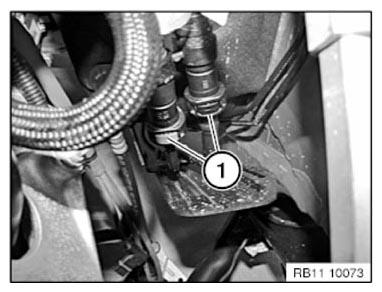

Unlock fuel feed and return lines (1) and disconnect.

Fig 5: Fuel Feed And Return Lines

G10099973

Courtesy of BMW OF NORTH AMERICA, INC.

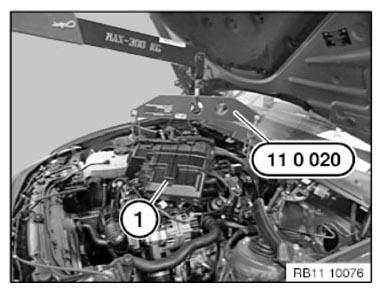

Secure electronics box (1) on engine against falling out.

Fit special tool 11 0 020 on engine.

IMPORTANT: Pay attention to chain of special tool 11 0 020 . Risk of damage.
Only raise engine at the lifting lugs (2) provided for this purpose.

Fig 6: Lifting Engine Using Special Tool (11 0 020)

G10099974

Courtesy of BMW OF NORTH AMERICA, INC.

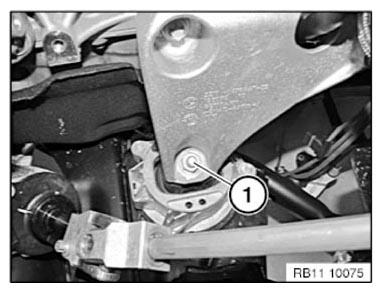

Release nut (1) on left and right engine mounts.

Installation note:

Replace nuts.

Release ground strap on left engine support arm.

Fig 7: Engine Mounts Nut

G10099975

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
